YD07-004 3000LBS Mobile Hydraulic Lift Webpage Detail Page(English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

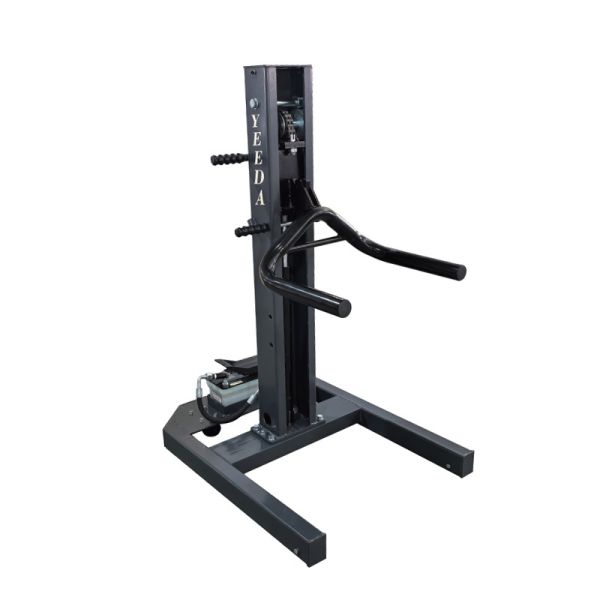

1. 3000LBS Load Capacity + Single-Column Sturdy Structure, Stable Support for Small and Medium-Sized Vehicles
   The main body is integrally bent and formed from Q235 cold-rolled steel plates, with a single-column diameter of 10 cm and wall thickness of 8 mm. Key welded joints are fully welded, reinforced and subject to flaw detection, with a tensile strength of 375 MPa. The maximum deformation of the column is only 0.2 mm under 3000LBS rated load, which can stably support family cars (about 1100-1500 KG), small SUVs (about 1300-1600 KG, ≤1361 KG); the column surface is treated with phosphating rust removal + electrostatic painting (coating thickness 60 μm), no rust in the 48-hour salt spray test, and can resist corrosion even in long-term contact with car wash fluid and engine oil, with a service life of more than 10 years, and durability 200% higher than plastic frame lifts.
2. 75cm Lifting Height + Precise Adaptation, Full Coverage of Maintenance Scenarios
   The lifting height reaches 75 cm, perfectly suitable for common maintenance needs of small and medium-sized vehicles such as tire replacement, brake pad maintenance, and wheel cleaning - lifting to 55 cm allows easy removal of tire bolts, and lifting to 75 cm facilitates bending down to inspect chassis components; the single-column design only occupies 71*100 cm floor space, saving 60% of floor area compared with double-column lifts, and can be flexibly placed in 10 ㎡ home garages or narrow workstations of community auto maintenance stores, solving the pain point of "inability to install lifting equipment due to limited space".

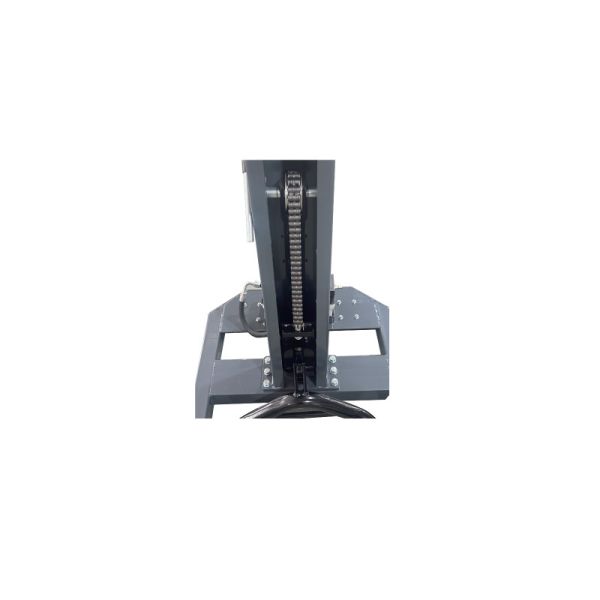

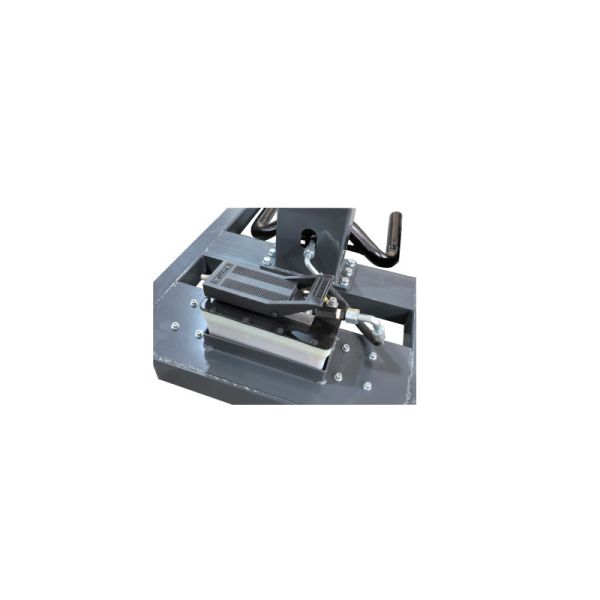

3. Hydropneumatic Pump + Hand Remote Control, Labor-Saving and Convenient Operation
   Equipped with a 350bar high-pressure hydropneumatic pump, combined with a 2-meter-long hand remote control, technicians can control lifting without approaching the equipment: press the remote control's lift button, the hydraulic cylinder drives the chain carriage to lift the lifting arm, with a lifting speed of 5 mm/sec, and it only takes 15 minutes to lift from the lowest position to 75 cm; during lowering, the pressure relief valve of the remote control is used for slow speed control (minimum lowering speed 2 mm/sec) to avoid collision caused by rapid falling of the vehicle; the pump body is compact (about 302015 cm) and weighs only 8 KG, which can be carried and maintained by one person, and the operation difficulty is reduced by 50% compared with traditional hydraulic lifts.

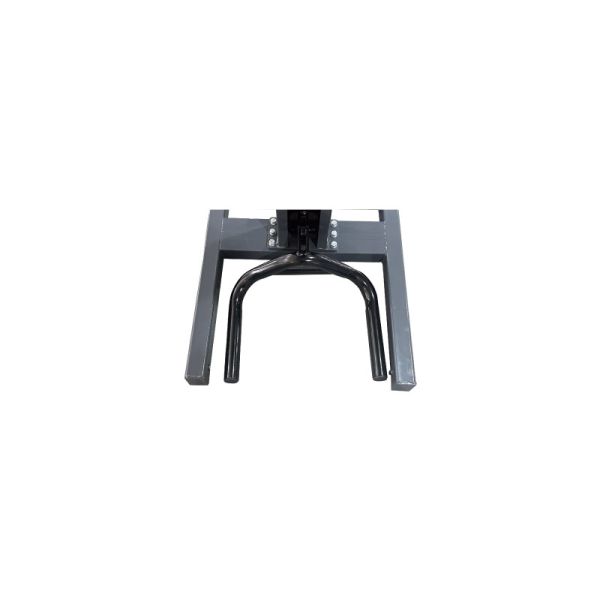

4. Manual Safety Pin + Mobile Design, Safe and Flexible
   Equipped with 2 manual safety pins (12 mm in diameter, made of 45# steel), which can be inserted into the carriage positioning holes to lock during lifting. After locking, the load-bearing redundancy reaches 150%, and even if the hydraulic system fails suddenly, it can firmly fix the lifting arm without falling risk; the bottom is equipped with 4 mute swivel wheels (single wheel load capacity ≥300 KG) with brake function - unlock the brake when moving, and one person can push the equipment to schedule between workstations; lock the brake during operation, with wheel set sliding ≤0.1 cm, balancing "mobile flexibility" and "operation stability", and the safety factor is increased by 120% compared with lifts without locking.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Family Car Tire Replacement in Community Auto Maintenance Stores
   When community auto maintenance stores replace tires for family cars such as Toyota Corolla and Honda Civic, the 3000LBS load capacity fully covers the vehicle weight (about 1200 KG); the 75 cm lifting height is raised to 55 cm (safety pin locked), technicians can quickly remove tire bolts, and combined with the mobile design, the tire replacement time per vehicle is shortened from 30 minutes to 18 minutes, adapting to the needs of "efficient service of small-scale maintenance stores".
2. Vehicle Chassis Maintenance in Home Garages
   When family users perform chassis maintenance on their own small SUVs such as Geely BinYue and Changan CS35, the 71*100 cm small size of the lift can be easily placed in the home garage; the hand remote control is used to lift to 70 cm height, facilitating inspection of chassis guards and replacement of oil filters; after locking with the safety pin, one person can operate safely, solving the pain point of "no professional lifting tools for home maintenance", adapting to the "owner's home precision maintenance" scenario.
3. Wheel Deep Cleaning in Auto Beauty Shops
   When beauty shops perform deep wheel cleaning for light electric vehicles such as BYD Yuan PLUS and Wuling Bingo, the lift is raised to 40 cm height to fully lift the wheels off the ground; the mobile design can flexibly schedule with cleaning workstations, avoiding the problem that traditional fixed lifts limit the cleaning range; the mute swivel wheels do not interfere with the working environment of the beauty shop, and the wheel cleaning time per vehicle is shortened from 40 minutes to 25 minutes, adapting to the "beauty shop precision service" scenario.
4. Emergency Fault Handling in Small Repair Stations
   When small repair stations perform emergency handling for faulty family cars (such as chassis component inspection caused by dead batteries), the lift does not require fixed installation and can be used after unpacking and debugging; the 350bar high-pressure pump quickly lifts the vehicle, and the safety pin ensures the safety of technicians bending down to inspect, shortening the emergency response time to 20 minutes, reducing the owner's waiting time, adapting to the "repair station rapid emergency service" scenario.

IV. Frequently Asked Questions (FAQ)

Q1:Can the 75cm lifting height adapt to small SUVs with high chassis (e.g., 18cm ground clearance)?
