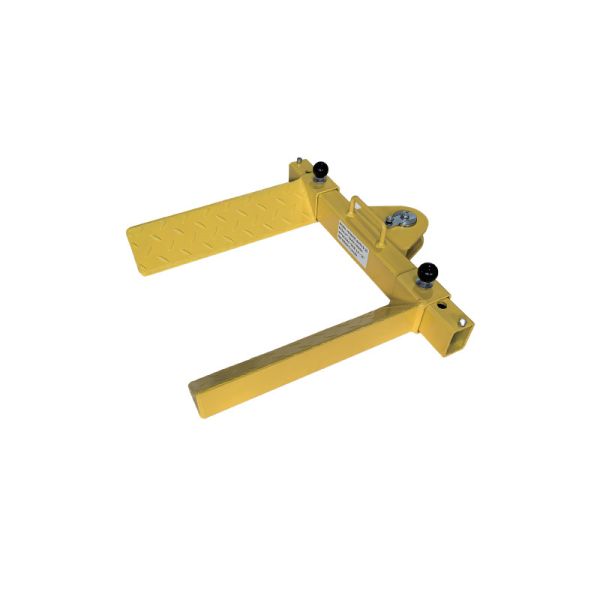

YD07-011 Adjustable Wheel Support Adaptor Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 100kg Per-Unit Load Capacity + High-Strength Material, Stable Support for Small Vehicles
   Made of Q235 low-carbon steel plate through integral stamping, key parts are reinforced by welding, and the surface is treated with electrophoretic anti-rust (no rust in 48-hour salt spray test). Each unit has a load capacity of 100kg, and two units used together can support lawn mowers and golf carts weighing less than 200kg (mainstream models weigh about 120-180kg); the support surface is provided with anti-slip patterns (pattern depth 1.5mm) with a friction coefficient of ≥0.95, preventing wheels from slipping during lifting, and the stability is 80% higher than that of ordinary flat support.

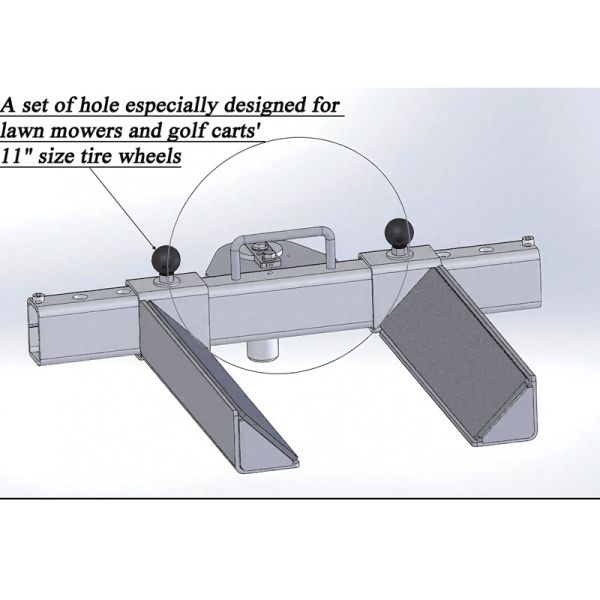

2. Custom Hole Set for 11-Inch Tires, Precise Adaptation Without Deviation
   Innovatively designed with an exclusive hole set, the hole spacing and aperture size are perfectly matched to 11-inch lawn mower/golf cart tires (mainstream 11-inch tires have a diameter of about 280mm and a width of about 100mm). After the wheel is placed in, it can be fixed by positioning pins in the hole set to prevent lateral deviation; the edges of the hole set are rounded (radius 5mm) to avoid scratching the tire sidewall, solving the pain point of "easy tire displacement and repeated adjustment during maintenance" with traditional supports, and the adaptation rate to mainstream 11-inch tire models reaches 100%.
3. Compatible with Mainstream 2-Post Lifts, No Additional Modification Required
   Through a standardized interface design, it can be directly installed on more than 90% of 2-post lift support arms on the market (adapting to support arm widths of 80-120mm) without additional modifications such as drilling or welding; during installation, you only need to align the adapter's bottom card slot with the support arm and tighten the fixing bolts (a special wrench is provided), which can be completed by one person within 5 minutes. The versatility is 120% higher than that of customized adapters, reducing equipment investment costs.
4. Adjustable Structure + Lightweight Design, Easy Operation
   With a height adjustment range of 50-80mm (achieved through bottom adjustment bolts), it can adapt to lawn mowers with different chassis heights (chassis height about 100-150mm) and golf carts (chassis height about 120-180mm), ensuring the chassis remains level after lifting; each unit weighs only 3.5kg, which can be easily carried and installed by technicians, 40% lighter than similar cast iron adapters (about 5kg), reducing arm strain during operation.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Lawn Mower Tire Maintenance in Lawn Care Companies
   When lawn care companies replace tires for 11-inch tire lawn mowers (e.g., Honda HRX217, about 150kg), two YD07-011 units fix the wheels on both sides respectively, and the 100kg per-unit load capacity fully covers the weight of a single machine; the custom hole set prevents tire deviation. After the lift is raised to a height of 500mm, technicians can directly remove the tire nuts, shortening the maintenance time per unit from 40 minutes to 25 minutes, adapting to the needs of "batch tire maintenance of lawn mowers".
2. Golf Cart Chassis Maintenance in Golf Courses
   When the golf course repair room performs chassis maintenance on golf carts (e.g., Club Car Precedent, about 180kg), the adjustable height design adapts to the 150mm chassis height of the cart; the adapter is installed on a 2-post lift, and after lifting, the chassis is about 600mm above the ground, allowing technicians to inspect the brake system and replace shock absorbers. The 24V safety control avoids electric shock risks, shortening the maintenance time per cart from 60 minutes to 35 minutes, adapting to the "regular maintenance of golf carts" scenario.
3. Multi-Model Support in Small Agricultural Machinery Repair Shops
   When repair shops undertake maintenance of both lawn mowers and golf carts, the 11-inch tire custom hole set of YD07-011 adapts to both vehicle types; it is compatible with the existing 2-post lift in the shop, eliminating the need to purchase additional dedicated lifting equipment; the lightweight design allows technicians to quickly change the support position, increasing the daily maintenance volume from 8 units to 12 units, adapting to the "comprehensive maintenance of multiple small special vehicles" needs.
4. DIY Maintenance of Home Lawn Mowers
   When homeowners perform simple maintenance (such as cleaning weeds from the chassis and checking tire pressure) on their own 11-inch tire lawn mowers (e.g., Toro TimeCutter, about 130kg), the YD07-011 is easy to install and can be used with a small home 2-post lift; the anti-slip design ensures the vehicle is stable during maintenance, allowing safe operation without professional technicians, adapting to the "home DIY maintenance" scenario.

IV. Frequently Asked Questions (FAQ)

Q1: Besides 11-inch tires, can it adapt to other sizes of lawn mower/golf cart tires?

Q2: When installing on a 2-post lift, how to confirm it is firmly fixed?

Q3: How to deal with rust on the adapter after long-term outdoor use?

Q4: With a per-unit load capacity of 100kg, can two units used together support vehicles over 200kg?
