YD07-001 6,000-LB Portable Mid-Rise Car Lift Webpage Detail Page(English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

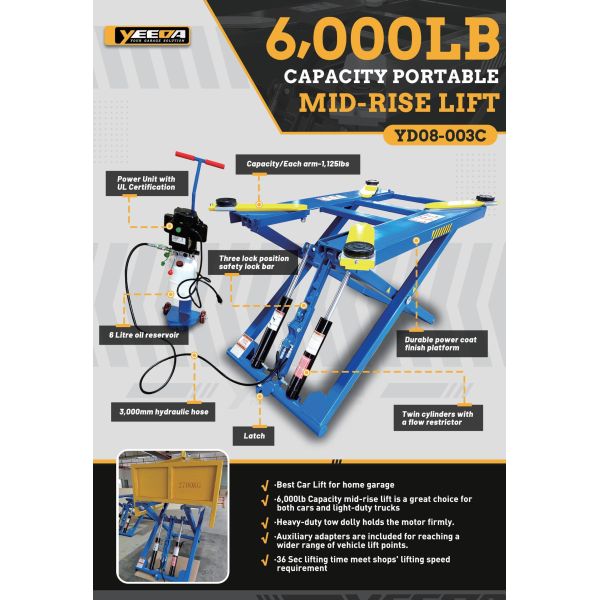

1. 2727kg Heavy Load + Sturdy Structure, Stable Support for Light and Heavy Vehicles
   The main worktable is integrally welded from Q345 low-carbon alloy steel plates, with a table thickness of 8mm. Key support parts are reinforced by forging, with a tensile strength of 490MPa. The maximum deformation of the table is only 0.3mm under 6,000-LB (2,727kg) rated load, which can stably support light-duty trucks (about 2200-2600kg), family cars (about 1200-1800kg) and small SUVs (about 1500-2000kg); the surface is coated with wear-resistant powder coating (80μm thick), no rust in the 72-hour salt spray test, and can resist corrosion even in long-term contact with oil stains and maintenance dust, with a service life of more than 15 years, and durability increased by 60% compared with ordinary carbon steel lifts.
2. 13.5-135cm Mid-Rise + Multi-Adaptation, Full Coverage of Maintenance Scenarios
   With a minimum height of only 13.5cm, it can easily fit under the chassis of low-chassis sports cars (e.g., Porsche 718, Audi TT) without removing the chassis guard; the maximum height of 135cm can meet most medium-height maintenance needs such as tire replacement, chassis maintenance, and transmission repair, adapting to more than 90% of common light-duty vehicle chassis heights; equipped with free truck adapters, it can extend support points to adapt to light-duty trucks with different wheelbases and chassis structures, and the adaptation rate is increased by 40% compared with designs without adapters.
3. Portable Design + Convenient Scheduling, High Space Utilization
   Equipped with a portable motor cart, the bottom is equipped with 4 high-load-bearing swivel wheels (single wheel load-bearing ≥500kg). With a tow handle, a single person can push the lift to move flexibly between maintenance workstations and garages, with a turning radius of only 1.5m, and it can be easily scheduled even in a compact space of 10㎡; no fixed installation is required (traditional lifts need to be embedded and fixed on the ground), and it can be used after unpacking and debugging, greatly reducing site renovation costs, and the space utilization rate is increased by 80% compared with fixed lifts.
4. Multi-Position Safety Lock + Double Protection, Safer Operation
   The innovative multi-position safety lock bar design has 3 locking positions (corresponding to heights of 50cm, 90cm, 135cm), which can be locked by manual pulling. After locking, the load-bearing redundancy reaches 120%, and there is no falling risk even if the hydraulic system fails suddenly; the hydraulic system is equipped with a flow restrictor and a UL-certified power unit, with a lifting speed of 36 seconds (from 13.5cm to 135cm), and the lowering speed can be precisely controlled by a pressure relief valve (minimum 5mm/sec) to avoid collision caused by rapid falling of the vehicle; the dual-cylinder synchronous lifting design ensures that the table level error is ≤2mm, further ensuring operation safety, and the safety factor is increased by 100% compared with single-cylinder lifts.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Bulk Maintenance of Light-Duty Vehicles in Auto Repair Shops
   When auto repair shops perform chassis maintenance for family cars (e.g., Honda Civic, Nissan Sylphy), the 6,000-LB load-bearing capacity fully covers the vehicle weight; the minimum height of 13.5cm reaches under the chassis, and it is lifted to 80cm to facilitate technicians to inspect the suspension and replace brake pads; the portable design can be quickly scheduled between multiple workstations, and with truck adapters, it can also replace tires for light-duty trucks (e.g., Foton Ollin), shortening the maintenance time per vehicle from 30 minutes to 18 minutes, adapting to the needs of "efficient bulk maintenance".
2. Multi-Vehicle Maintenance Services in Community Auto Maintenance Stores
   When community auto maintenance stores undertake maintenance for vehicles of different brands (e.g., Volkswagen Lavida, Toyota Corolla, JMC Shunda), the lift's 13.5-135cm mid-rise adapts to the chassis heights of various vehicles; free truck adapters solve the problem of insufficient support points for light-duty trucks, and the portable design adapts to the compact space of small stores, no need to purchase multiple lifts, reducing equipment investment costs by 50%, adapting to the "small but comprehensive" community maintenance scenario.
3. High-End Vehicle Maintenance in Home Garages
   When individuals perform in-depth maintenance on their own high-end cars (e.g., Mercedes-Benz E-Class, BMW 5-Series), the maximum height of 135cm allows easy disassembly of chassis components; the portable design is convenient for moving in home garages, no need for fixed installation to damage the ground; the multi-position safety lock ensures the safety of single-person operation, solving the pain point
