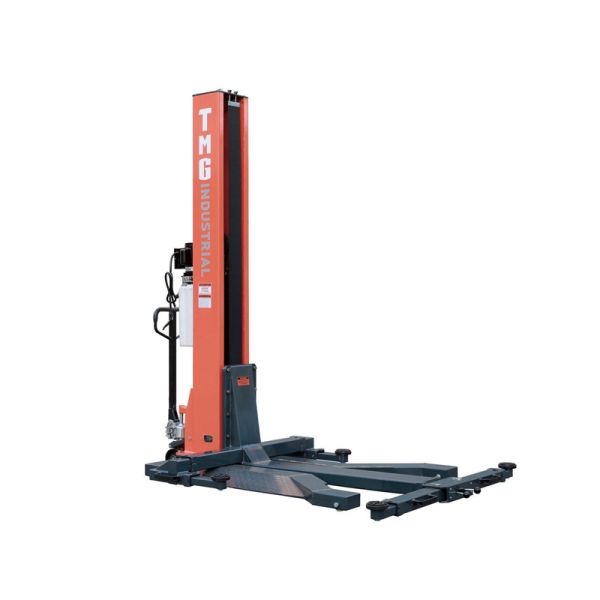

YD07-003 6000 LB Portable Single Post Auto Lift Webpage Detail Page(English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 6000 LB Heavy Load + Heavy-Duty Structural Column, Tough and Durable
   It adopts a 10.5"×12.5" heavy-duty structural column (made of Q355 low-carbon alloy steel) with a wall thickness of 12 mm. Key connection parts are welded after forging and reinforcement, with a tensile strength of 510 MPa. The maximum deformation of the structural column is only 0.3 mm under 6000 LB rated load, which can stably support light-duty trucks (about 2200-2600 KG), family cars (about 1200-1800 KG); the surface of the structural column is treated with sandblasting rust removal + double-layer electrostatic painting (coating thickness 80 μm), no rust in the 72-hour salt spray test, and can resist corrosion even in long-term contact with oil stains and maintenance dust, with a service life of more than 15 years, and durability increased by 60% compared with ordinary carbon steel lifts.
2. 72" High Lifting Height + Multi-Dimensional Adjustment, Full Coverage of Maintenance Scenarios
   The lifting height without adapters reaches 72" (approx. 182.9 cm), which can meet high-lifting needs such as in-depth chassis maintenance, transmission disassembly and assembly, and suspension system replacement; with 8 height adapters (thickness optional from 5-15 cm), it can further expand the height adaptation range to fit high-chassis light-duty trucks; the ultra-low ground height of 5" (approx. 12.7 cm) can easily reach under the chassis of low-stance modified cars (e.g., Porsche 718, Audi TT) without removing the guard; the retractable reach arms support 55"-91.5" spacing adjustment, combined with 28.75"-83.75" front-rear lift pad adjustment range, adapting to more than 95% of wheelbases and chassis support points of common models.
3. Pallet-Jack Style Mobility + Chain Drive, Flexible and Efficient
   The innovative pallet-jack style low-profile body design is equipped with 4 high-load-bearing swivel wheels (single wheel load capacity ≥600 KG), allowing a single person to push the equipment to move flexibly between maintenance workstations, with a turning radius of only 1.8 meters, and it can be easily scheduled even in a compact space of 15 ㎡; the carriage adopts chain-drive technology, combined with a 3HP high-power hydraulic pump, the lifting speed reaches 10 mm/sec, and it only takes 12 minutes to lift from 5" to 72", which is 40% more efficient than ordinary screw-driven lifts; the hydraulic pump has a working pressure of 2650 PSI, and can maintain stable power output even in low-temperature environments (-10℃) to avoid jamming.
4. CETL Certification + Dual Safety Protection, Compliant and Safe
   It has CETL certification, fully complying with safety and EMC standards in Canada and the USA, and can enter the North American market without additional modifications; it is equipped with dual safety protection of "mechanical single-point self-lock + anti-slip adjustment pad": ① The mechanical single-point self-lock has 8 locking gears (corresponding to heights of 10"-72"), which automatically locks during lifting, with no falling risk even if the hydraulic system fails, and the load-bearing redundancy reaches 120% after

5.
