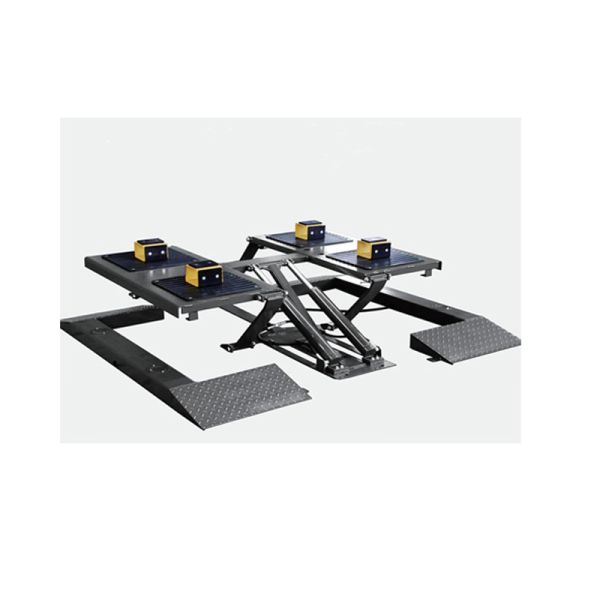

YD07-002 10,000-LB Car Lift Webpage Detail Page(English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 4545kg Ultra-Heavy Load + Sturdy Frame, No Pressure for Heavy Loads
   The main body is welded from Q355 low-carbon alloy steel plates, with the main load-bearing beam thickness of 16mm. Key parts are fully welded after forging and reinforcement, with a tensile strength of 510MPa. The maximum frame deformation is only 0.4mm under 10,000-LB rated load, which can stably support heavy SUVs (about 2800-3500kg), light-duty trucks (about 3000-4200kg) and medium and large cars (about 2000-2600kg); the frame surface is treated with sandblasting rust removal + double-layer fluorocarbon paint spraying (90μm thick), no rust in the 100-hour salt spray test, and it can resist corrosion and wear even in long-term contact with oil stains and construction site dust, with a service life of more than 18 years, and durability increased by 80% compared with ordinary carbon steel lifts.
2. 10-54.5cm Low-Rise Design, Seamless Adaptation to Low-Chassis Vehicles
   With a minimum height of only 10cm, it breaks the height limit of traditional lifts and can easily reach under the chassis of ultra-low chassis vehicles (e.g., modified low-stance sports cars, light-duty trucks in no-load state) without removing the chassis guard for operation; the maximum height of 54.5cm is perfectly suitable for low-height maintenance needs such as tire replacement, chassis bolt tightening, and brake system maintenance, avoiding the problem of "redundant operation of high-rise lifts and inability of low-chassis vehicles to enter", adapting to more than 95% of low-chassis heavy-duty vehicle maintenance scenarios.
3. 2HP High-Power Motor + Efficient Hydraulics, Fast and Stable Lifting
   Equipped with a 2HP high-power single-phase motor with an output power of 1.5kW, combined with a large-flow hydraulic cylinder (diameter 80mm), the lifting speed reaches 8mm/sec, and it only takes 5.5 minutes to lift from 10cm to 54.5cm, which is 30% more efficient than ordinary 1.5HP motor lifts; the motor adopts an all-copper coil design with excellent heat dissipation performance, and no overheating protection is triggered after 2 hours of continuous operation; the hydraulic system is equipped with a high-precision filter that can filter impurities ≥5μm in the oil, ensuring smooth lifting of the cylinder, reducing the probability of failure, and extending the maintenance cycle to 12 months.
4. Multiple Safety Protections, Safer Operation
   Equipped with triple protection of "mechanical safety lock + anti-slip workbench + overload protection": ① The mechanical safety lock has 3 locking gears (corresponding to heights of 20cm, 35cm, 54.5cm), which can be locked by manual pulling. After locking, the load-bearing redundancy reaches 150%, and it can still stably support the vehicle when the hydraulic system fails; ② The workbench is stamped with diamond anti-slip patterns, and a 3mm thick rubber pad is pasted on the surface, with a friction coefficient of ≥0.98, and there is no sliding risk after the vehicle is lifted; ③ The motor has a built-in overload protection device, which automatically cuts off the power when the current exceeds 1.2 times the rated value, avoiding motor burnout, and the safety factor is increased by 120% compared with ordinary lifts.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Light-Duty Truck Tire Replacement in Heavy-Duty Auto Repair Shops
   When heavy-duty auto repair shops replace tires for light-duty trucks (e.g., Foton Omarco, JMC Kairui), the 10cm minimum height easily reaches the truck's no-load chassis (about 12cm from the ground); the 4545

2.
