Four-Post Vehicle Lift with 12000LB Capacity Hydraulic Power Unit and 198.42 Runway Length
Four-Post Vehicle Lift with 12000LB Capacity Hydraulic Power Unit and 198.42 Runway Length
Four-Post Vehicle Lift with 12000LB Capacity Hydraulic Power Unit and 198.42 Runway Length
Four-Post Vehicle Lift with 12000LB Capacity Hydraulic Power Unit and 198.42 Runway Length
Specifications
Model :
YD07-012
Model Number :
YD07-012
Net Weight :
1,170kg / 2,574LBS
Delivery Time :
30-45DAYS
Runway Length :
5,040mm / 198.42"
Supply Ability :
500PCS/MONTH
Capacity :
12,000LB / 5,454KGS
Certification :
CE
Lift Type :
Four-Post
Place of Origin :
Zhejiang，China
Power Unit :
Hydraulic Power Unit
MOQ :
50pcs
Packaging Details :
Carton Box or Crate
Max Height from Runways to Floor :
1,965mm / 77.36"
Payment Terms :
T/T
Product Name :
Four-Post Vehicle Lift YD07-012 12000LB Hydraulic Car Lift
Brand Name :
YEEDA
Description
Four-Post Vehicle Lift YD07-012 12000LB Hydraulic Car Lift
Four-Post Vehicle Lift with 12000LB Capacity Hydraulic Power Unit and 198.42

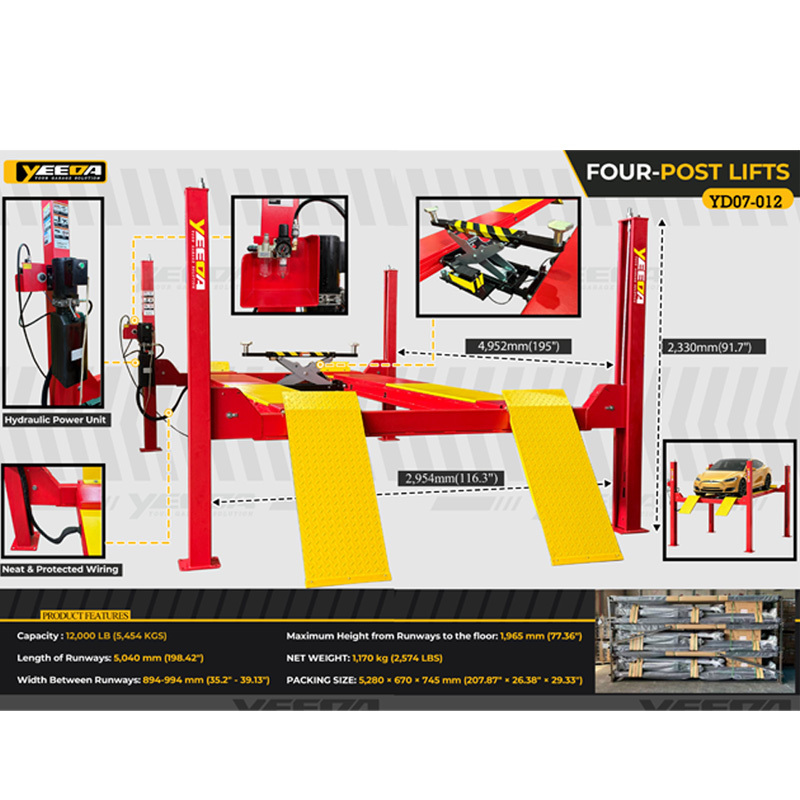

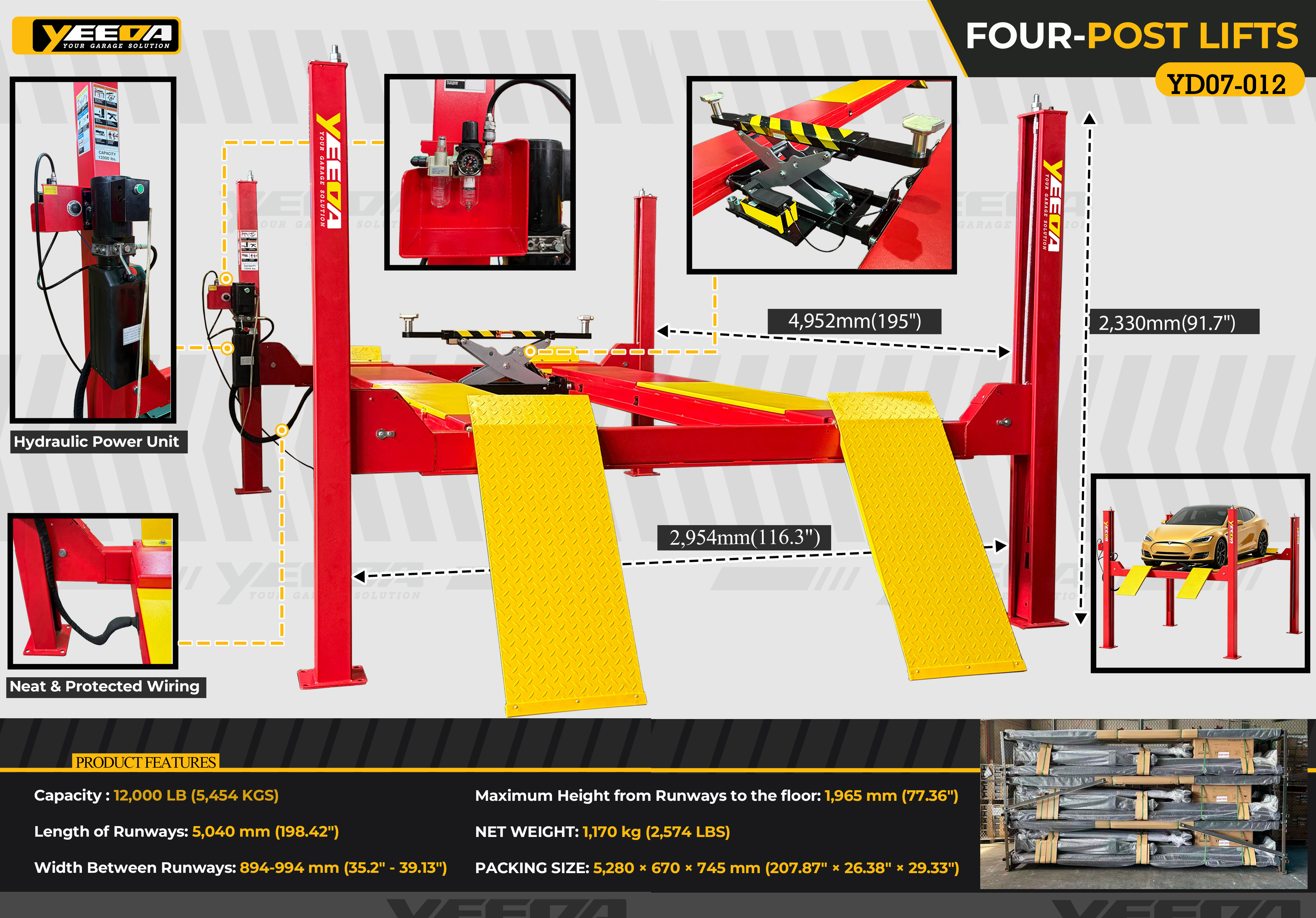

This four-post vehicle lift is designed for garage and workshop vehicle lifting, support, and service work. Model YD07-012 has a capacity of 12,000LB (5,454KGS) and uses a hydraulic power unit for operation. The image shows neat and protected wiring on the unit.
Product Parameters
Item Specification
Model YD07-012
Type Four-Post Vehicle Lift
Capacity 12,000LB / 5,454KGS
Power Hydraulic Power Unit
Max Height from Runways to Floor 1,965mm / 77.36"
Runway Length 5,040mm / 198.42"
Width Between Runways 894-994mm / 35.2"-39.13"
Overall/Length Reference 4,952mm / 195"
Height Reference 2,330mm / 91.7"
Width Reference 2,954mm / 116.3"
Net Weight 1,170kg / 2,574LBS
Packing Size 5,280 x 670 x 745mm / 207.87" x 26.38" x 29.33"
Application Garage/Workshop Vehicle Lifting
Key Features
  • 12,000LB / 5,454KGS capacity
  • Four-post lift structure
  • Hydraulic power unit
  • Neat and protected wiring
  • Runway length 5,040mm / 198.42"
  • Max height from runways to floor 1,965mm / 77.36"
  • Suitable for garage vehicle service and storage support
Application
This four-post lift is suitable for garage and workshop use where vehicles need to be raised for maintenance, inspection, or storage positioning. The hydraulic power unit and four-post structure provide stable lifting support.
Product Questions and Answers
What is the capacity of YD07-012?
Capacity is 12,000LB (5,454KGS).
What type of lift is it?
It is a four-post vehicle lift.
What power system does it use?
It uses a hydraulic power unit, with neat and protected wiring.
What is the maximum height from runways to the floor?
1,965mm / 77.36".
What is the runway length and width between runways?
Runway length is 5,040mm / 198.42". Width between runways is 894-994mm / 35.2"-39.13".
What are the weight and packing details?
Net weight 1,170kg / 2,574LBS. Packing size 5,280 x 670 x 745mm / 207.87" x 26.38" x 29.33".
Where is this lift used?
It is used in garages and workshops for vehicle lifting and service.
