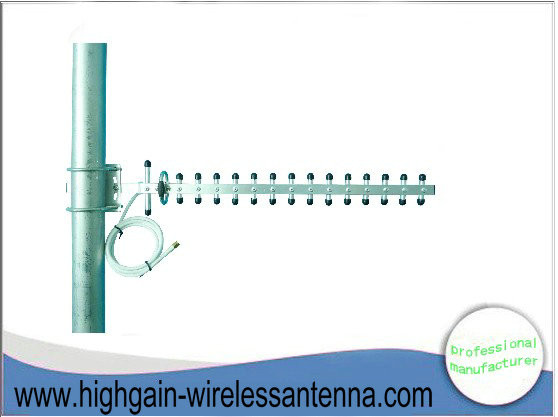

Long Range Directional Yagi Antenna
Long Range Directional Yagi Antenna
Specifications
Product Name :
Directional Yagi Antenna
Feature :
High Gain,Aluminum Alloy frame
Application :
2.4GHZ WLAN System
Frequency rang-MHz :
2400-2483
Polarization :
Horizontal or Vertical
Lightning protection :
DC ground
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSY-2400-16
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description


2400MHz - 2483 MHz Long Range 16DBI 2.4GHZ Directional Yagi Antenna For Wireless Adapter


Application:

● 2.4GHZ WLAN System
● Point to point and point to point multipoint transmission system
● Wireless bridge ,Terminal antenna
● Wireless AP , wireless adapter


Feature:
● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V

Specification

Model NO

RSY-2400-16

Electric Spec

Frequency rang-MHz

2400-2483

Bandwidth -MHz

83

Gain -dBi

16

element

16

beam width -°

H:30 V:28

-dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

SMA female or others

Mechanical Specification

Size -mm

590*88*44

Cable length-m

1

Antenna weight-kg

0.33

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50




Antenna details :









Application Example :



Install demonstration




View of us ;
