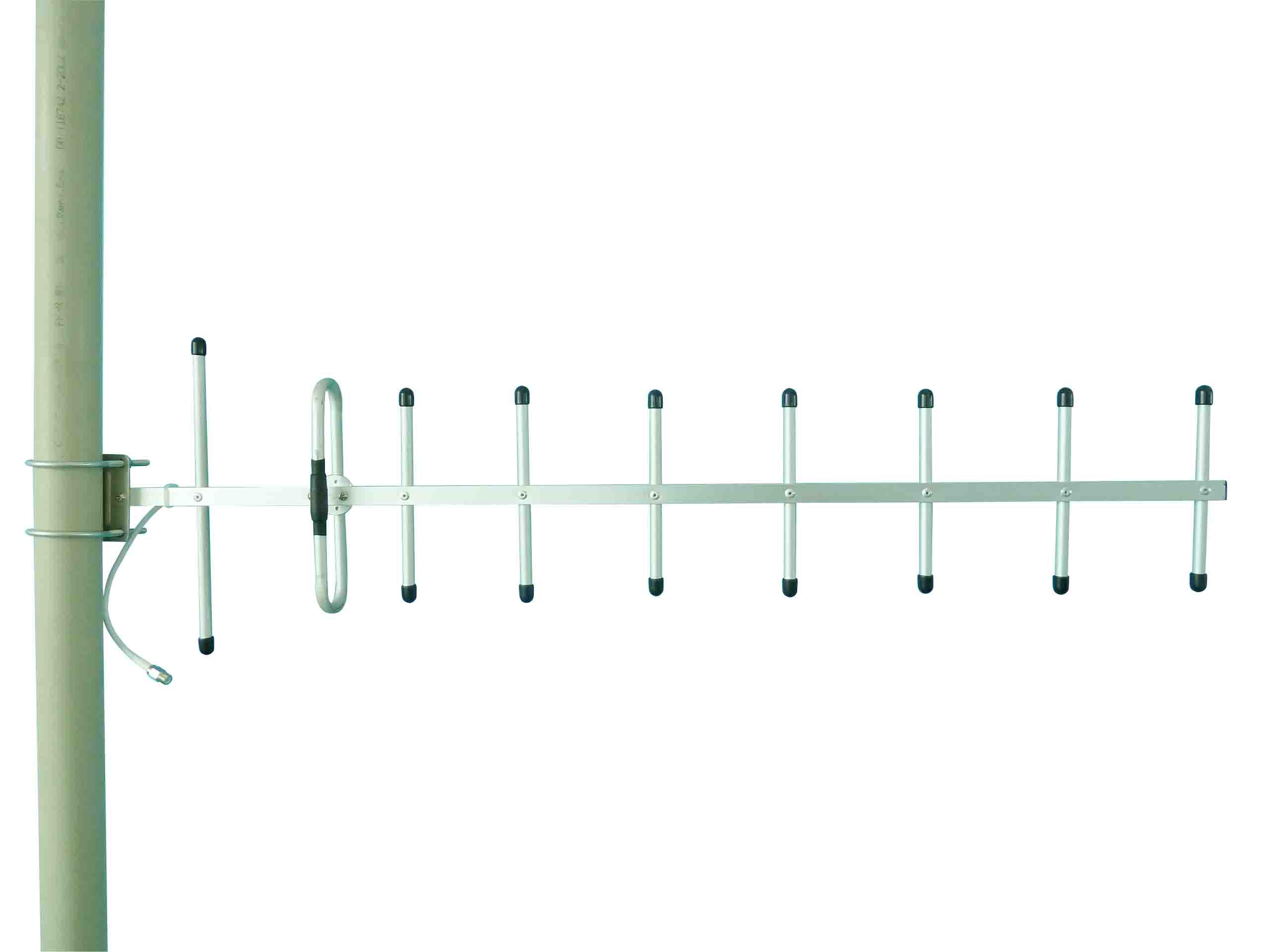

Aluminum Alloy 12dBi Directional Yagi TV Antenna With 9 Element 550MHz - 750MHz
Aluminum Alloy 12dBi Directional Yagi TV Antenna With 9 Element 550MHz - 750MHz
Aluminum Alloy 12dBi Directional Yagi TV Antenna With 9 Element 550MHz - 750MHz
Aluminum Alloy 12dBi Directional Yagi TV Antenna With 9 Element 550MHz - 750MHz
Specifications
Model Number :
RSY-550-750-12
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
Directional Yagi Antenna
Feature :
High Gain,Aluminum Alloy frame
beam width -° :
H:48 V:42
Bandwidth -MHz :
200
Frequency rang-MHz :
550～750
Application :
Terminal TV receiving antenna
Description


Aluminum Alloy 12dBi Directional Yagi TV Antenna With 9 Element 550MHz - 750MHz


Application:

● TV Repeater station system
● Terminal TV receiving antenna
● Village to Village project


Feature:
● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V



Specification

Model NO

RSY-550-750-12

Electric Spec

Frequency rang-MHz

550～750

Bandwidth -MHz

200

Gain -dBi

12

element

9

beam width -°

H:48 V:42

F/B Ratio -dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

F female or others

Mechanical Specification

Size -mm

1000*270*54

Cable length-m

0.3

Antenna weight-kg

0.52

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50

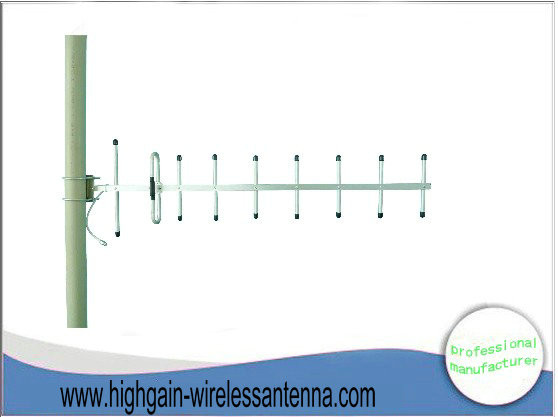

Antenna details :







Application Example :






Install demonstration




View of us ;
