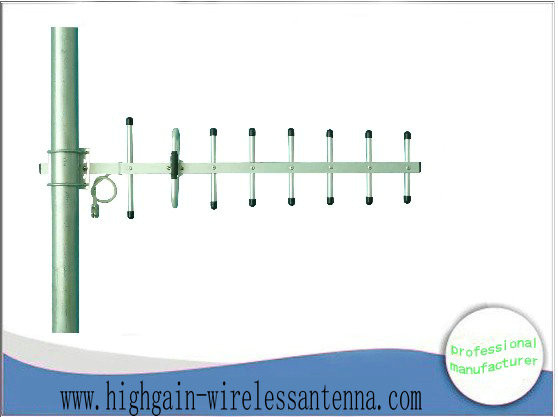

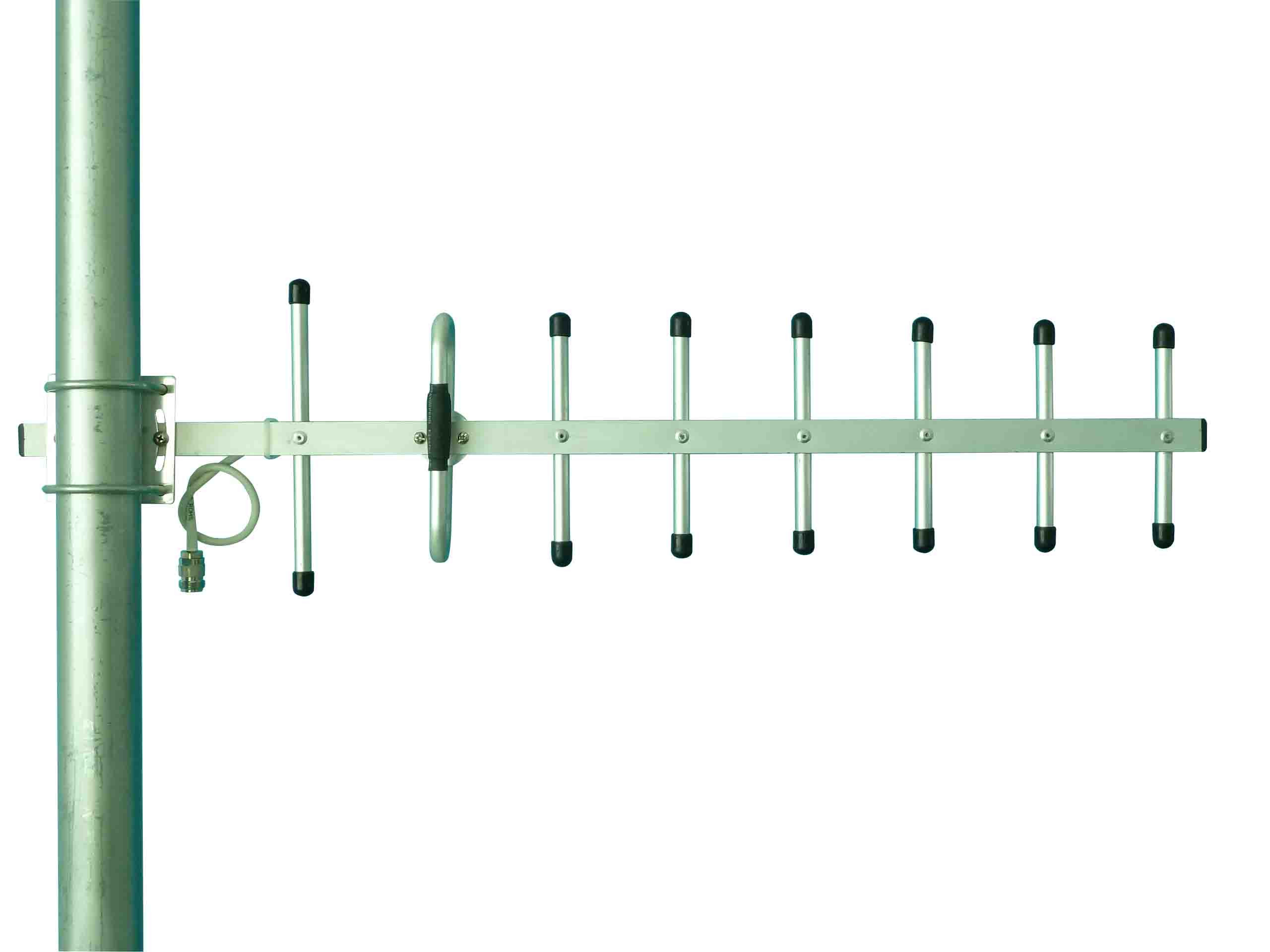

cell phone GSM900 Mobile Directional Yagi Antenna 8 Element OEM
cell phone GSM900 Mobile Directional Yagi Antenna 8 Element OEM
cell phone GSM900 Mobile Directional Yagi Antenna 8 Element OEM
cell phone GSM900 Mobile Directional Yagi Antenna 8 Element OEM
Specifications
Model Number :
RSY-900-12
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
Directional Yagi Antenna
Feature :
High Gain,Aluminum Alloy frame
Lightning protection :
DC ground
Connector model :
N female or others
Size -mm :
710*190*54
Application :
GSM900 Mobile telecommunication
Description


cell phone GSM900 Mobile Directional Yagi Antenna 8 Element


Feature:

● Optimized dimension
● Optional installation H or V
● High Gain
● Aluminum Alloy frame
● Full day for working



Application:
● GSM900 Mobile telecommunication
● 900MHZ RFID System
● Repeater and Terminal antenna


Specification

Model NO

RSY-900-12

Electric Spec

Frequency rang-MHz

824～960

Bandwidth -MHz

136

Gain -dBi

12

element

8

beam width -°

H:48 V:40

F/B Ratio -dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

N female or others

Mechanical Specification

Size -mm

710*190*54

Cable length-m

0.3

Antenna weight-kg

0.42

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50




Antenna details :







Application Example :




Install demonstration




View of us ;
