Long Range 2.4 GHZ Directional Yagi Antenna For Wireless Adapter 16DBI
Long Range 2.4 GHZ Directional Yagi Antenna For Wireless Adapter 16DBI
Long Range 2.4 GHZ Directional Yagi Antenna For Wireless Adapter 16DBI
Long Range 2.4 GHZ Directional Yagi Antenna For Wireless Adapter 16DBI
Specifications
Model Number :
RSY-2400-16
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
Directional Yagi Antenna
Feature :
High Gain,Aluminum Alloy frame
Application :
2.4GHZ WLAN System
Frequency rang-MHz :
2400-2483
Polarization :
Horizontal or Vertical
Lightning protection :
DC ground
Description


Long Range 16DBI 2.4 GHZ Directional Yagi Antenna For Wireless Adapter


Application:

● 2.4GHZ WLAN System
● Point to point and point to point multipoint transmission system
● Wireless bridge ,Terminal antenna
● Wireless AP , wireless adapter


Feature:
● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V


Specification

Model NO

RSY-2400-16

Electric Spec

Frequency rang-MHz

2400-2483

Bandwidth -MHz

83

Gain -dBi

16

element

16

beam width -°

H:30 V:28

-dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

SMA female or others

Mechanical Specification

Size -mm

590*88*44

Cable length-m

1

Antenna weight-kg

0.33

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50

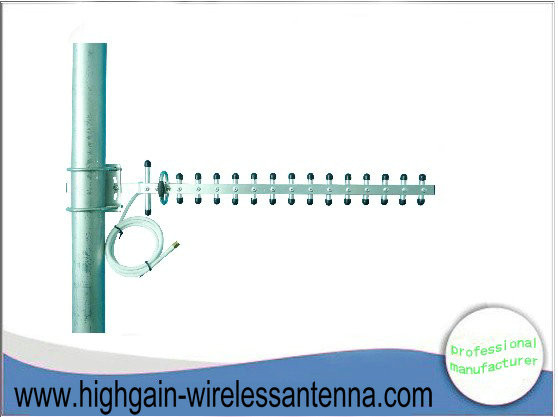

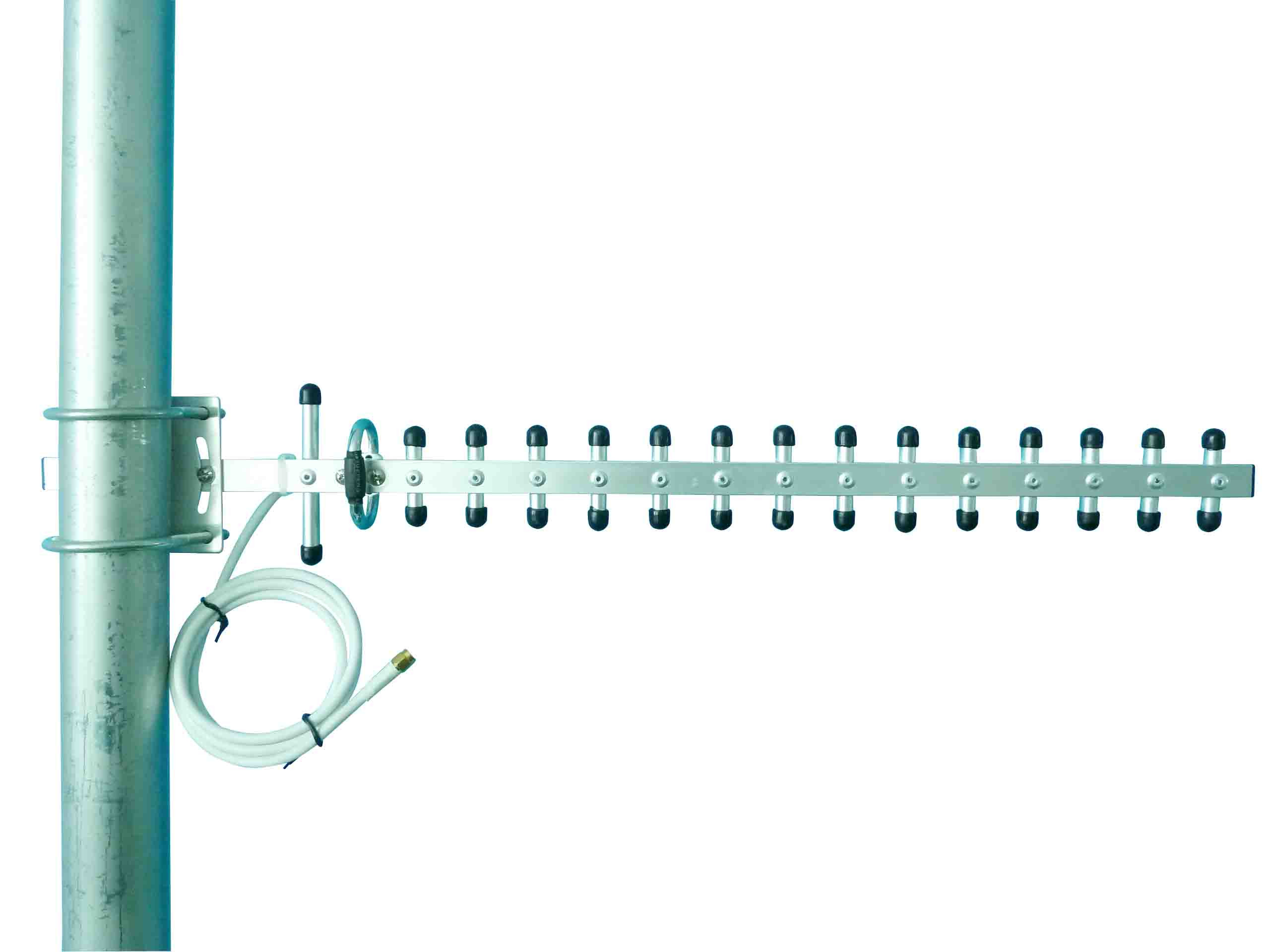

Antenna details :









Application Example :



Install demonstration




View of us ;
