Long Distance Directional Yagi Antenna , GSM 900 / 1800 PHS Antenna 12dBi
Long Distance Directional Yagi Antenna , GSM 900 / 1800 PHS Antenna 12dBi
Long Distance Directional Yagi Antenna , GSM 900 / 1800 PHS Antenna 12dBi
Long Distance Directional Yagi Antenna , GSM 900 / 1800 PHS Antenna 12dBi
Long Distance Directional Yagi Antenna , GSM 900 / 1800 PHS Antenna 12dBi
Long Distance Directional Yagi Antenna , GSM 900 / 1800 PHS Antenna 12dBi
Specifications
Model Number :
RSY-900/1800-12
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Application :
Repeater station system
Product Name :
Directional Yagi Antenna
Feature :
High Gain,Aluminum Alloy frame
Frequency rang-MHz :
824～960/1710～1880
Bandwidth -MHz :
136/170
Gain -dBi :
12/12
Description


Aluminum Alloy Long Distance Directional Yagi Antenna , GSM 900 / 1800 PHS Antenna 12dBi


Feature:
● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V


Application:
● GSM 900&1800/PHS System
● Repeater station system
● Long distance telecommunication


Specification

Model NO

RSY-900/1800-12

Electric Spec

Frequency rang-MHz

824～960/1710～1880

Bandwidth -MHz

136/170

Gain -dBi

12/12

element

16

beam width -°

H:36 V:32

F/B R-dB

≥16

VSWR

≤2

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

N female or others

Mechanical Specification

Size -mm

800*180*54

Cable length-m

1

Antenna weight-kg

0.43

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50

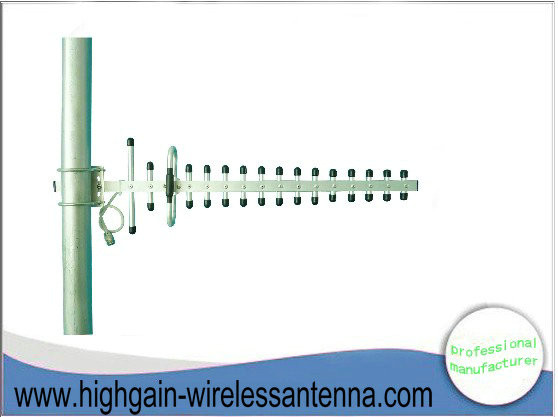

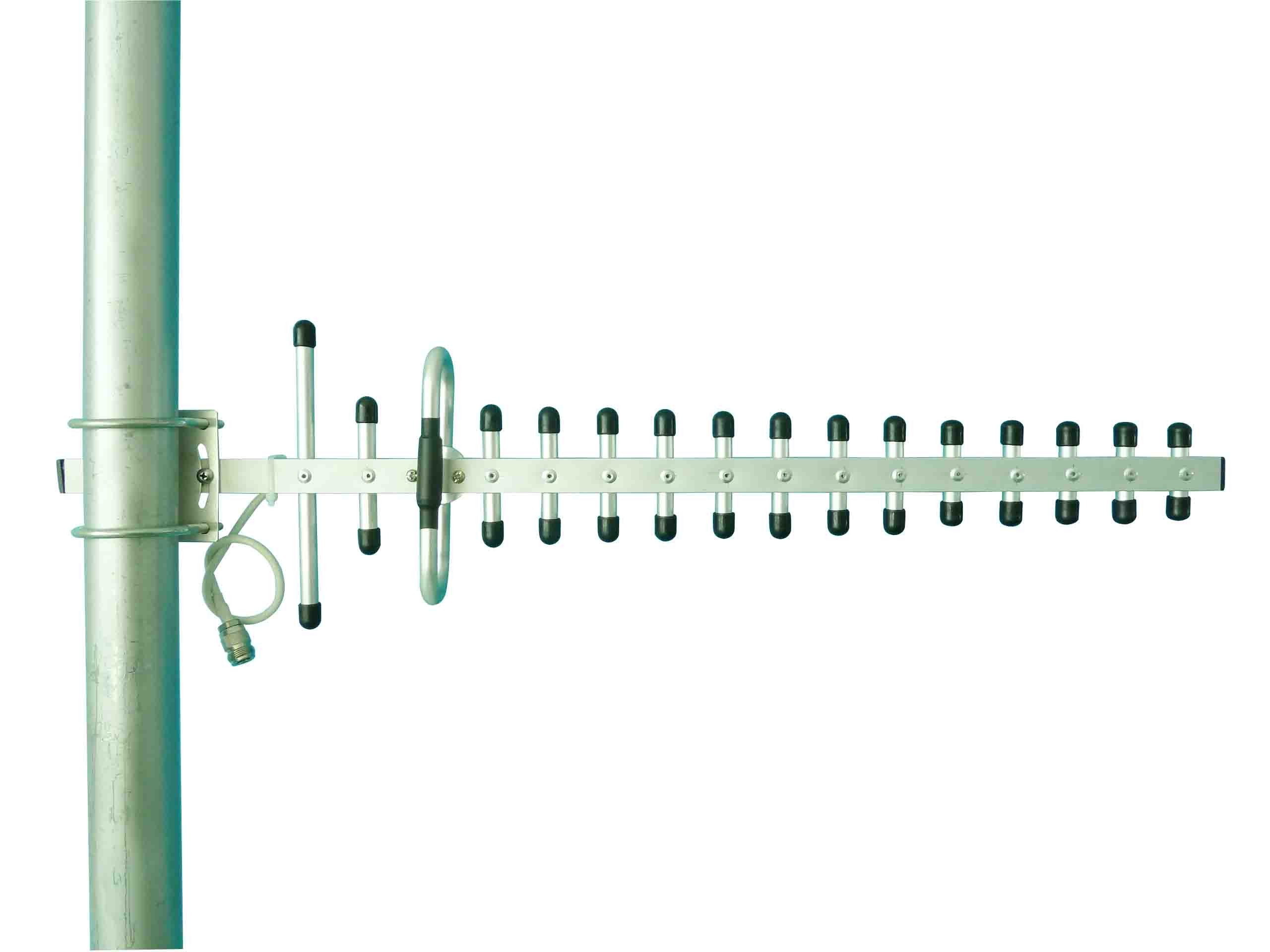

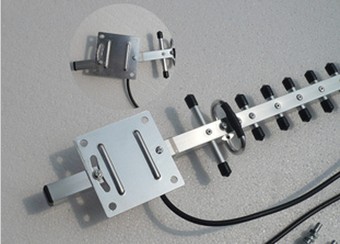

Antenna details :







Application Example :






Install demonstration




View of us ;
