GSM 1800 / PHS 15dBi Yagi Directional Antenna with SMA Female Connector
GSM 1800 / PHS 15dBi Yagi Directional Antenna with SMA Female Connector
GSM 1800 / PHS 15dBi Yagi Directional Antenna with SMA Female Connector
GSM 1800 / PHS 15dBi Yagi Directional Antenna with SMA Female Connector
Specifications
Model Number :
RSY-1710-1880-15
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
Directional Yagi Antenna
Feature :
High Gain,Aluminum Alloy frame
Application :
GSM1800/PHS System
Frequency rang-MHz :
1710～1880
Bandwidth -MHz :
170
beam width -° :
H:40 V:37
Description


GSM 1800 / PHS 15dBi Yagi Directional Antenna with SMA Female Connector


Application:

● GSM1800/PHS System
● Repeater station system
● Long distance telecommunication


Feature:

● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V


Specification

Model NO

RSY-1710-1880-15

Electric Spec

Frequency rang-MHz

1710～1880

Bandwidth -MHz

170

Gain -dBi

15

element

13

beam width -°

H:40 V:37

F/B Ratio-dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

SMA female or others

Mechanical Specification

Size -mm

570*90*44

Cable length-m

0.3

Antenna weight-kg

0.33

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50

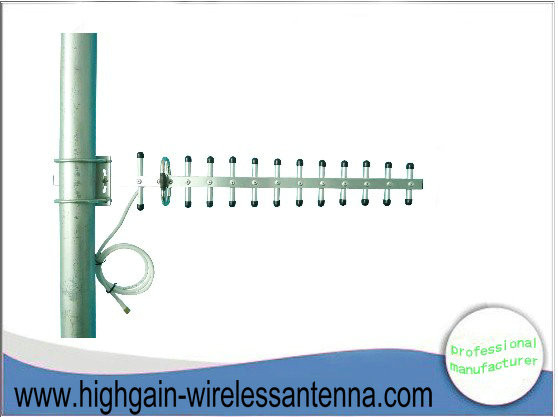

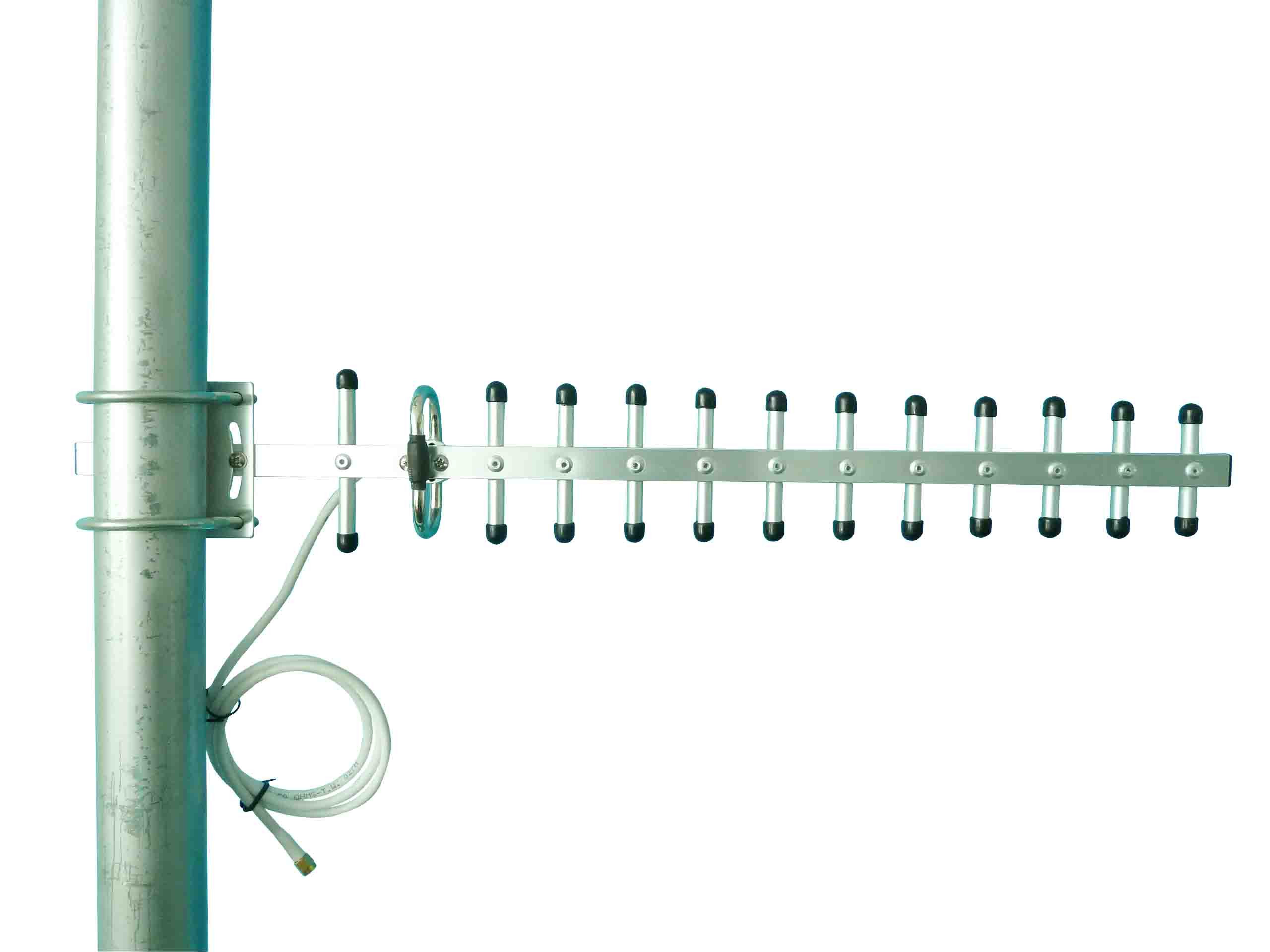

Antenna details :







Application Example :






Install demonstration




View of us ;
