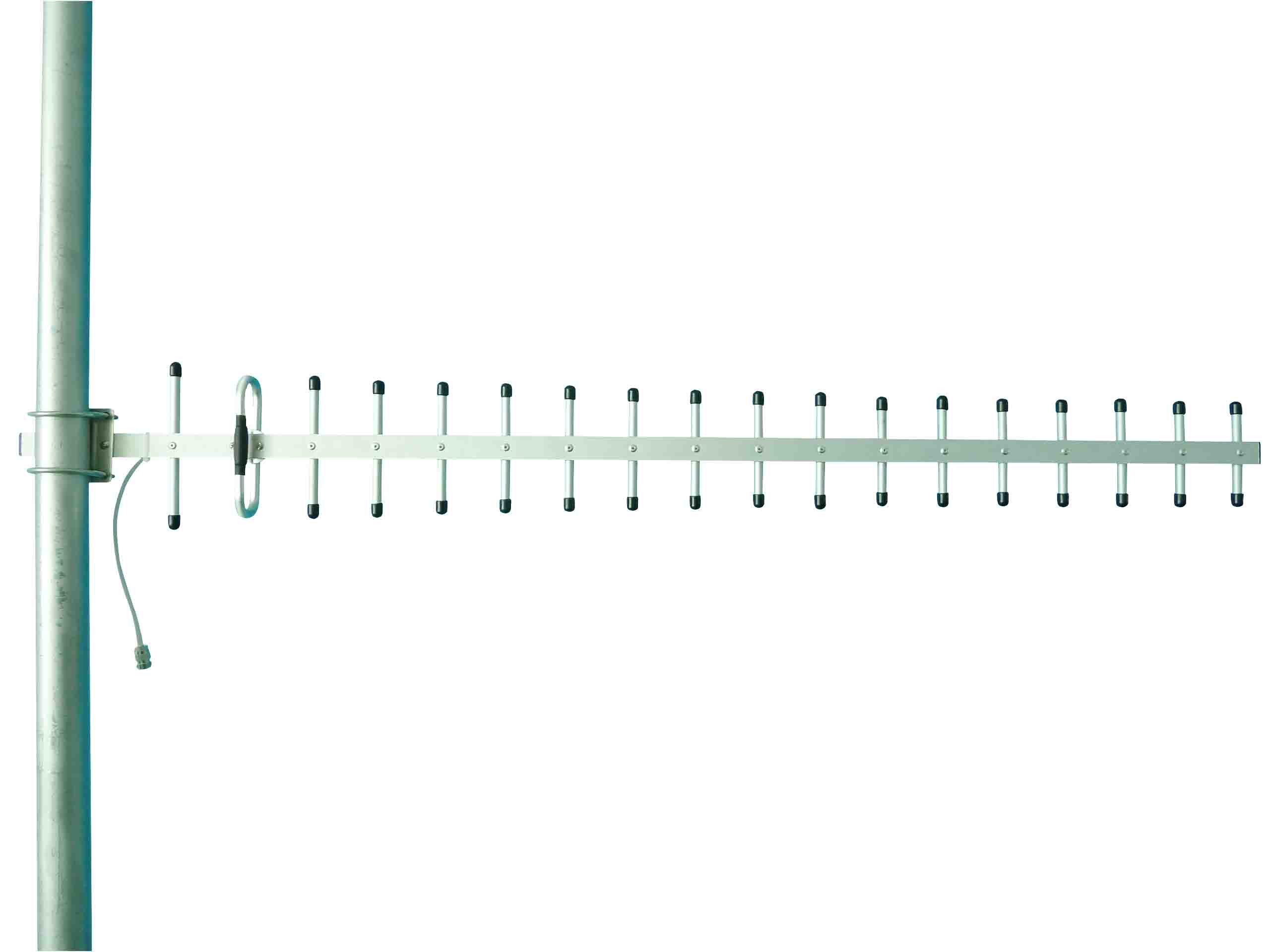

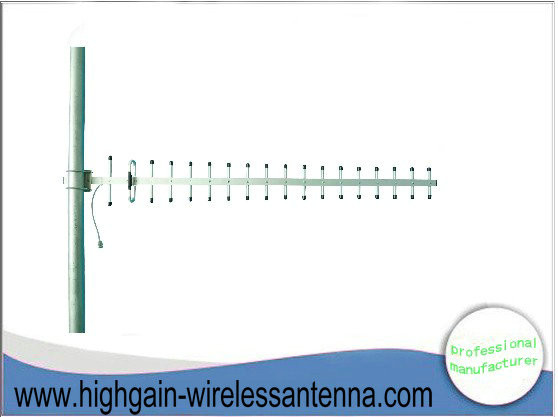

High Gain 900MHZ RFID Directional Yagi Antenna 18 dBi 806MHz - 960MHz
High Gain 900MHZ RFID Directional Yagi Antenna 18 dBi 806MHz - 960MHz
High Gain 900MHZ RFID Directional Yagi Antenna 18 dBi 806MHz - 960MHz
High Gain 900MHZ RFID Directional Yagi Antenna 18 dBi 806MHz - 960MHz
Specifications
Model Number :
RSY-900-18
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Application :
GSM 900 Mobile telecommunication
Product Name :
Directional Yagi Antenna
Feature :
High Gain,Aluminum Alloy frame
Frequency rang-MHz :
806～960
Bandwidth -MHz :
154
Gain -dBi :
18
Description


GSM High Gain 900MHZ RFID Directional Yagi Antenna 18 dBi 806MHz - 960MHz


Application:
● GSM 900 Mobile telecommunication
● 900MHZ RFID System
● Repeater and Terminal antenna


Feature:
● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V


Specification

Model NO

RSY-900-18

Electric Spec

Frequency rang-MHz

806～960

Bandwidth -MHz

154

Gain -dBi

18

element

18

beam width -°

H:30 V:25

F/B Ratio-dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

N female or others

Mechanical Specification

Size -mm

1293*190*54

Cable length-m

0.3

Antenna weight-kg

0.68

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50



Antenna details :







Application Example :






Install demonstration




View of us ;
