Point to Multi point 1.2GHZ Directional Yagi Antenna / Outdoor Terminal Antenna
Point to Multi point 1.2GHZ Directional Yagi Antenna / Outdoor Terminal Antenna
Point to Multi point 1.2GHZ Directional Yagi Antenna / Outdoor Terminal Antenna
Point to Multi point 1.2GHZ Directional Yagi Antenna / Outdoor Terminal Antenna
Specifications
Model Number :
RSY-1200-15
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
Directional Yagi Antenna
Feature :
High Gain,Aluminum Alloy frame
Frequency rang-MHz :
1100～1300
Bandwidth -MHz :
200
beam width -° :
H:28 V:28
F/B Ratio-dB :
≥16
Description

Horizontal / Vertical Point to Multi point Directional Yagi Antenna

Outdoor 1.2GHZ Image Terminal Antenna



Feature:
● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V


Application:
● 1.2GHZ Image transmission system
● Point to Multi point system
● Long distance terminal antenna


Specification

Model NO

RSY-1200-15

Electric Spec

Frequency rang-MHz

1100～1300

Bandwidth -MHz

200

Gain -dBi

15

element

13

beam width -°

H:28 V:28

F/B Ratio-dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

N female or others

Mechanical Specification

Size -mm

810*130*56

Cable length-m

0.3

Antenna weight-kg

0.45

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50

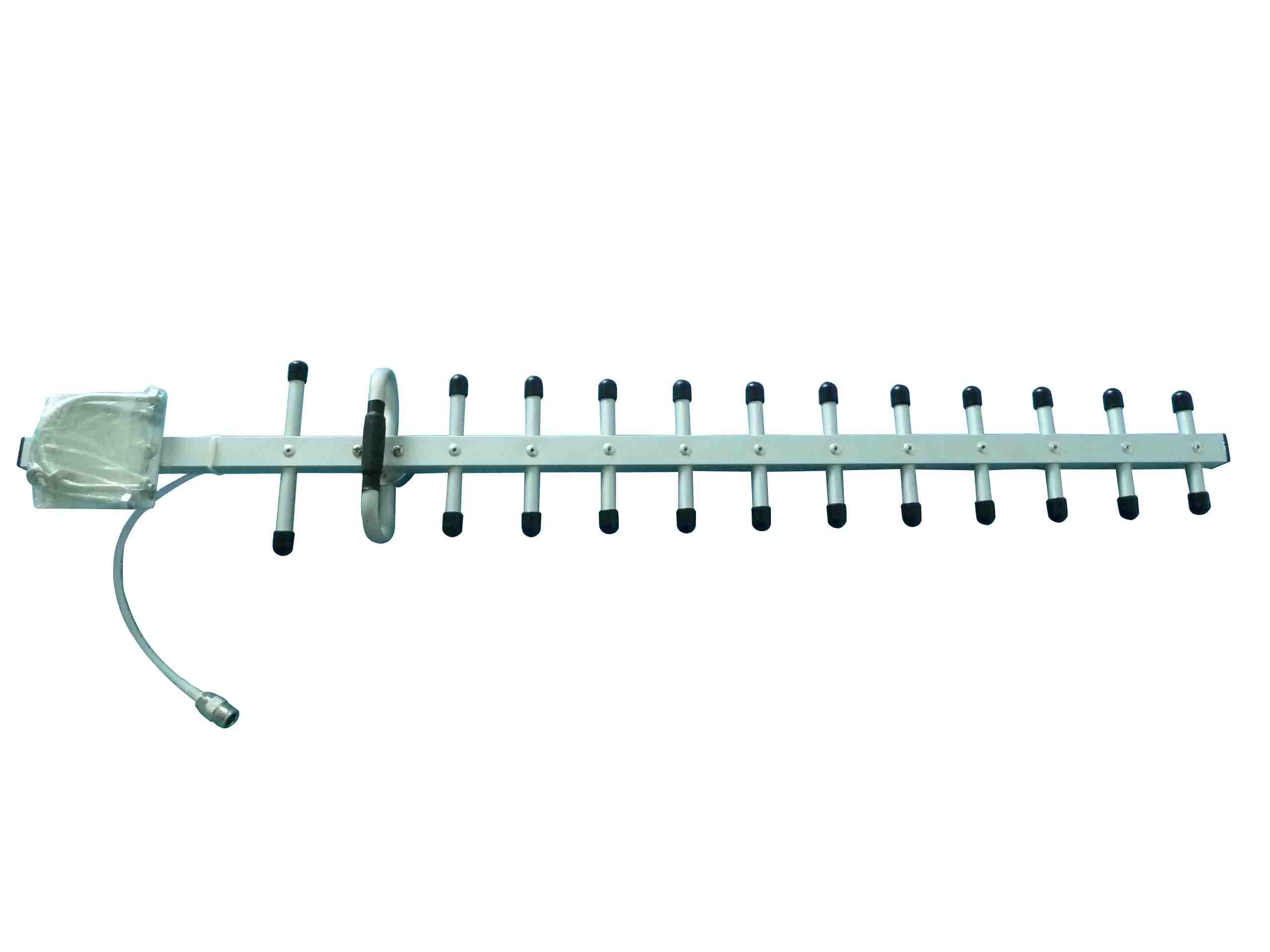

Antenna details :







Application Example :

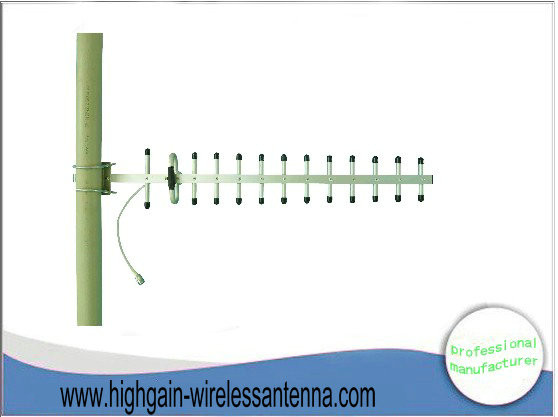

Install demonstration




View of us ;
