multipoint to multipoint Yagi Directional Antenna Wireless 420MHZ
multipoint to multipoint Yagi Directional Antenna Wireless 420MHZ
multipoint to multipoint Yagi Directional Antenna Wireless 420MHZ
multipoint to multipoint Yagi Directional Antenna Wireless 420MHZ
multipoint to multipoint Yagi Directional Antenna Wireless 420MHZ
multipoint to multipoint Yagi Directional Antenna Wireless 420MHZ
multipoint to multipoint Yagi Directional Antenna Wireless 420MHZ
multipoint to multipoint Yagi Directional Antenna Wireless 420MHZ
Specifications
Model Number :
RSY-420-12
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
Directional Yagi Antenna
Feature :
High Gain,Optional installation H or V
Application :
420MHZ Wireless multipoint to multipoint
Frequency rang-MHz :
420±10
Bandwidth -MHz :
20
Gain -dBi :
12
Description


12 dBi multipoint to multipoint Yagi Directional Antenna Wireless 420MHZ

Feature:

● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V

Application:
● 420MHZ Wireless multipoint to multipoint telecommunication system
● 420MHZ Wireless Access system
● Village to Village project


Specification

Model NO

RSY-420-12

Electric Spec

Frequency rang-MHz

420±10

Bandwidth -MHz

20

Gain -dBi

12

element

6

beam width -°

H:40 V:36

F/B Ratio-dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

SMA female or others

Mechanical Specification

Size -mm

930*370*80

Cable length-m

0.3

Antenna weight-kg

0.5

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50

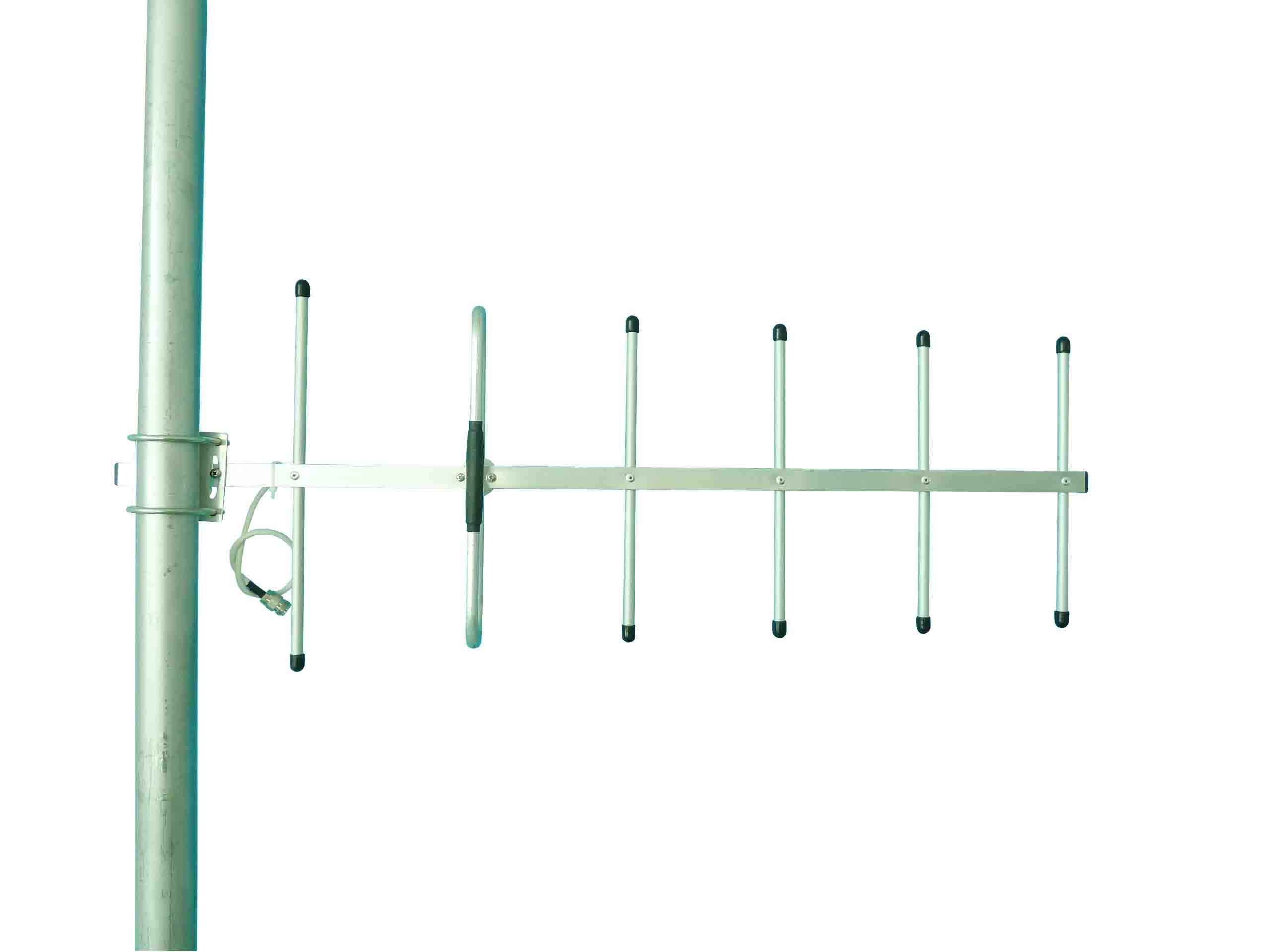

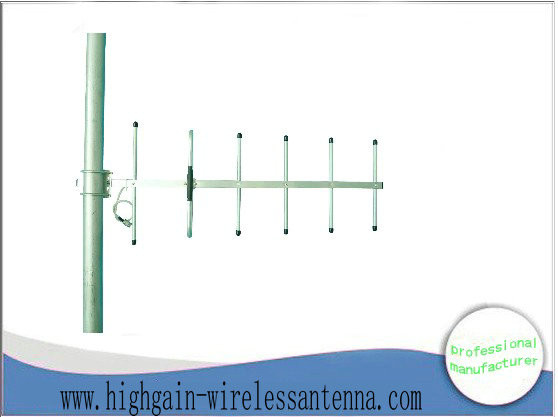

Antenna details :







Application Example :

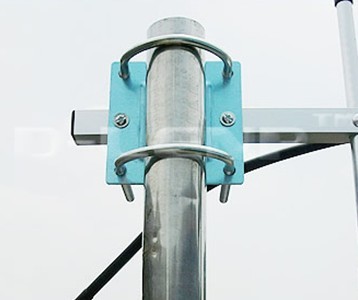

Install demonstration




View of us ;
