12 DBi Wireless 433MHZ Directional Yagi Antenna High Gain Outdoor Portable
12 DBi Wireless 433MHZ Directional Yagi Antenna High Gain Outdoor Portable
12 DBi Wireless 433MHZ Directional Yagi Antenna High Gain Outdoor Portable
12 DBi Wireless 433MHZ Directional Yagi Antenna High Gain Outdoor Portable
12 DBi Wireless 433MHZ Directional Yagi Antenna High Gain Outdoor Portable
12 DBi Wireless 433MHZ Directional Yagi Antenna High Gain Outdoor Portable
Specifications
Model Number :
RSY-433-12
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
Directional Yagi Antenna
Feature :
High Gain,Full day for working
Application :
433MHZ Wireless Access system
Bandwidth -MHz :
20MHz
Gain-DBi :
12DBi
Input Impedance-Ω :
50
Description


Portable 12 DBi Wireless 433MHZ Directional Yagi Antenna High Gain Outdoor


Application:
● 433MHZ RIFID System
● 433MHZ Wireless Access system
● Village to Village project


Feature:
● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V



Specification

Model NO

RSY-433-12

Electric Spec

Frequency rang-MHz

433±10

Bandwidth -MHz

20

Gain-DBi

12

element

6

beam width -°

H:42 V:38

F/B Ratio -dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

N female or others

Mechanical Specification

Size -mm

770*350*80

Cable length-m

0.3

Antenna weight-kg

0.55

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50

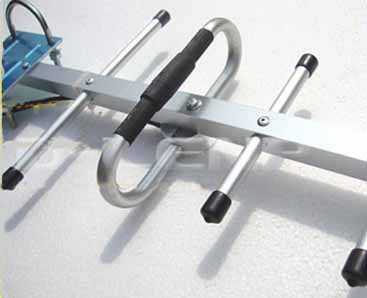

Antenna details :







Application Example :

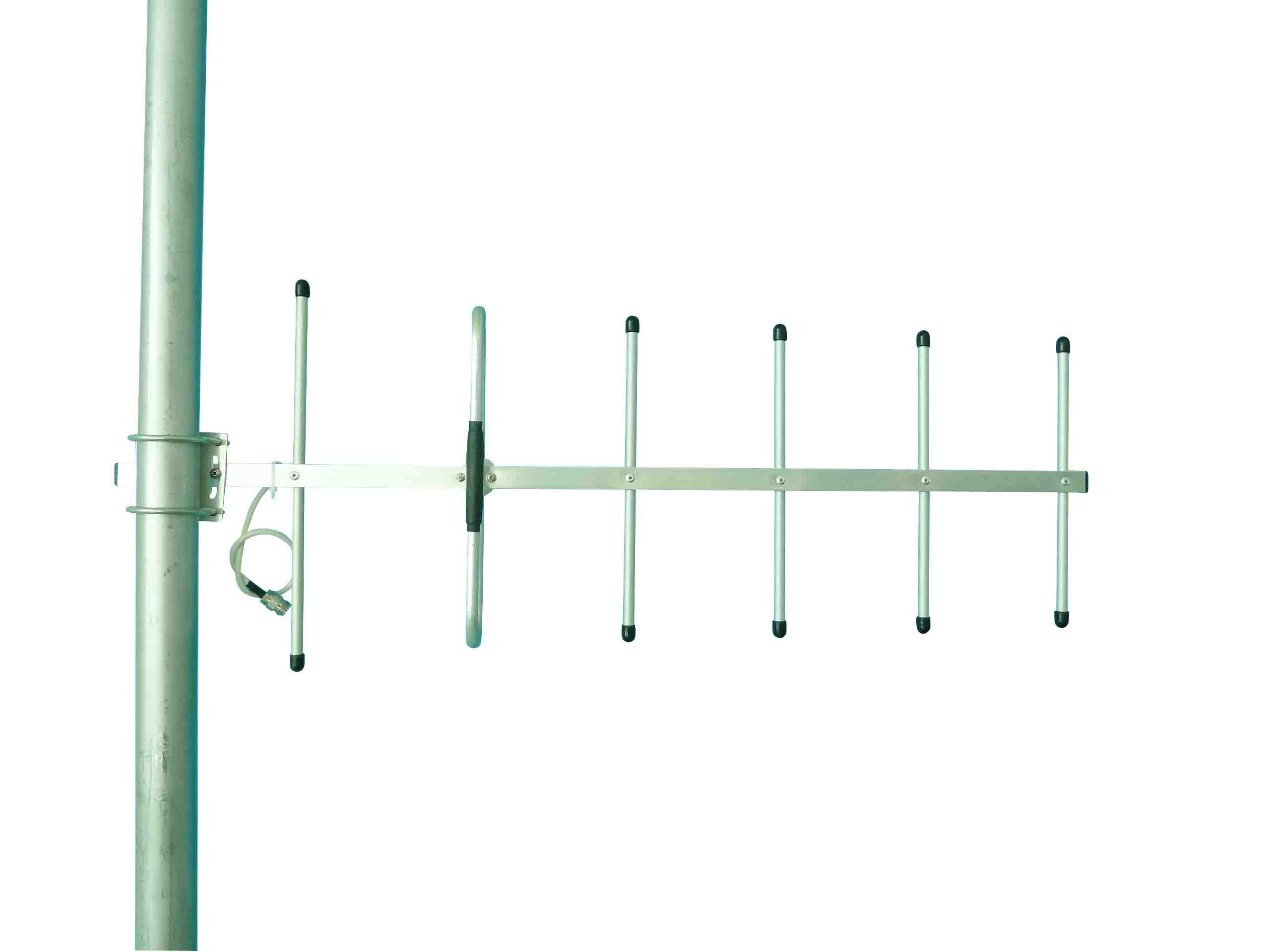

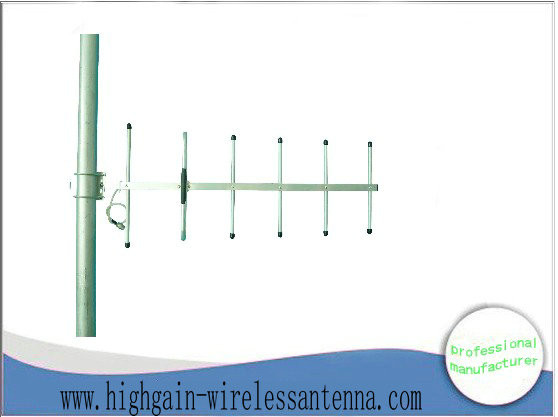

Install demonstration




View of us ;
