USB A-B shielded coupler and flange adaptor panel mount kit L-com ECF504-AB zinc alloy flange design
USB A-B shielded coupler and flange adaptor panel mount kit L-com ECF504-AB zinc alloy flange design
Specifications
specifications :
安装框尺寸:35.6×19.1×1.8mm ;耦合器尺寸:34.4×22.9×17.1mm
Interface type :
USB
Applicable scope :
电脑外围互连、测试和测量、数据采集
Insert material :
外壳:不锈钢 ;法兰接头:锌合金
category :
法兰面板安装耦合器
Description :
USB, DVI, HDMI Connector Adapters RoHS
Mfr. Part # :
ECF504-AB
Model Number :
ECF504-AB
Description

Product Overview

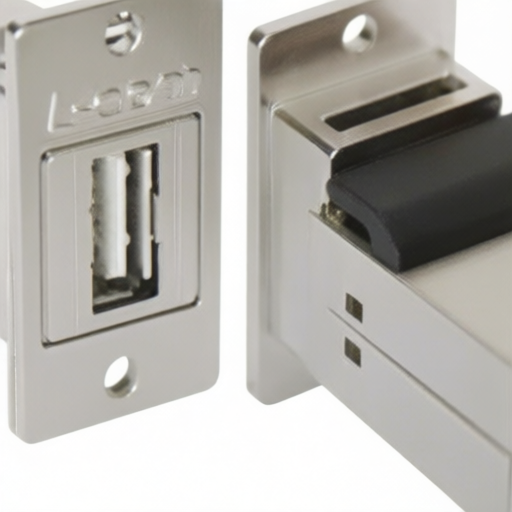

This kit includes a shielded coupler and a flange adaptor for USB A-B connections, designed for panel mounting. It is RoHS compliant and shipped un-assembled. The flange-mounted keystone adaptor allows for easy integration into panels.

Product Attributes

  • Brand: L-COM
  • RoHS Compliant: Yes
  • Material (Flanged Adaptor): Zinc Alloy
  • Material (Hardware): Stainless Steel
  • Packaging: Individually packaged in accordance with L-COM Packaging Specification PS-0031.

Technical Specifications

Item Specification Value
Product Name ADPT USB A-B CPLR KIT UADKEY-AB
Model ECF504-AB ECF504-AB
Kit Includes Shielded Coupler 1
Kit Includes Flange Adaptor 1
Kit Includes Package Mounting Screws 1 (4-40 x 1/4")
Screw Size #4-40 UNC-2A x 1/4" Long 2X
Recommended Panel Opening (Thru) #4-40 UNC-2B .75 [19.1]
Dimensions (Inches) Overall Height 1.142
Dimensions (Inches) Overall Width .900
Dimensions (Inches) Overall Depth .675
Dimensions (mm) Overall Height 29
Dimensions (mm) Overall Width 22.9
Dimensions (mm) Overall Depth 17.1
Dimensions (Inches) Panel Opening Height 1.40
Dimensions (mm) Panel Opening Height 35.6
Dimensions (Inches) Panel Opening Width 1.36
Dimensions (mm) Panel Opening Width 34.4
Dimensions (Inches) Panel Opening Depth .07
Dimensions (mm) Panel Opening Depth 1.8
Overall Cable Length Tolerance (12" [305]) +1 [25] / -0
Overall Cable Length Tolerance (>12" [305] 60" [1524]) +2 [51] / -0
Overall Cable Length Tolerance (>60" [1524] 120" [3048]) +4 [102] / -0
Overall Cable Length Tolerance (>120" [3048] 300" [7620]) +6 [152] / -0
Overall Cable Length Tolerance (>300" [7620]) +5% / -0%
Other Dimensional Tolerances (.X) .2
Other Dimensional Tolerances (.XX) .02
Other Dimensional Tolerances (.XXX) .005
