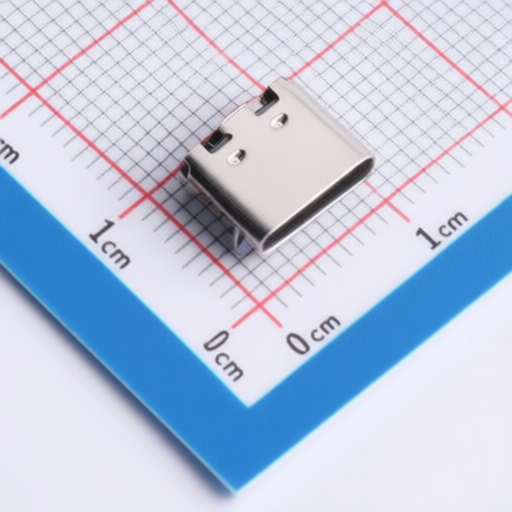

HH HH 16P TYPE-C Y495 Receptacle Suitable for Industrial and Commercial Electronic Applications
HH HH 16P TYPE-C Y495 Receptacle Suitable for Industrial and Commercial Electronic Applications
Specifications
Protocol Standard :
USB 2.0
Supplementary Features :
带定位柱
Number of Contacts :
16P
length :
7.35mm
Detection color :
黑色
Operating temperature :
-40℃~+85℃
Connector Type :
Type-C
Connect-Disconnect Life :
3千次
Description :
USB 2.0 16P Type-C SMD USB, DVI, HDMI Connector Adapters RoHS
Mfr. Part # :
HH 16P TYPE-C (Y495)
Package :
SMD
Model Number :
HH 16P TYPE-C (Y495)
Description

Product Overview

This product is a 16-pin Type-C receptacle, identified by model number Y495. It is designed for various applications and is available in multiple color options including Black, White, and Orange. The product is manufactured by Shenzhen HuiHuan Technology Co., Ltd. and is RoHS compliant. Packaging details are provided for bulk and individual units.

Product Attributes

  • Brand: HH
  • Product Type: 16P TYPE-C Receptacle
  • Model Suffix: (Y495)
  • Colors: Black, White, Orange
  • Outer Casing Material: SUS201, SPCC
  • Certifications: RoHS
  • Manufacturer: (Shenzhen HuiHuan Technology Co., Ltd.)

Technical Specifications

Item Model Number Color Outer Casing Quantity per Unit Packaging Dimensions (mm) Carton Dimensions (mm) Total Units per Carton
1 1016-FGB495 BLACK SUS201 1000 PCS/PLATE 330*100*24.4mm 350*340*310mm 10000 PCS/CARTON
2 1016-FGW412 WHITE SUS201 1000 PCS/PLATE 330*100*24.4mm 350*340*310mm 10000 PCS/CARTON
3 1016-FGC043 ORANGE SUS201 1000 PCS/PLATE 330*100*24.4mm 350*340*310mm 10000 PCS/CARTON
4 1016-FGB501 BLACK SPCC 1000 PCS/PLATE 330*100*24.4mm 350*340*310mm 10000 PCS/CARTON
Carrier Tape Specifications: W=24mm, T=0.35mm
Cover Tape Specifications: W=21.5mm
Reel Specifications: 350mm
Packaging Notes: 16PCS empty at the front and back of each reel, sealed with masking tape. Protective tape applied after filling the reel. 1Pcs material label attached. 10 reels per stack (10000PCS) in one outer carton. Handle with care during transport. Do not stack more than 1.8M high or apply heavy pressure during transport. Drop test conditions: 1.2m free fall from a corner, edge, or face. Product must not dislodge from the tape groove, show damage or deformation, and inner packaging material should not be severely damaged.

Packaging Components: CARRIER TAPE, REEL, PLATE, COVER TAPE, RoHS LABEL, PRODUCT LABEL, TRANSPARENT GLUE TAPE, CARTON, PE waterproof bag, PROTECTION RIBBON, DRYER (2 BAGS), TOTAL 10 REELS.

Pack Direction: 0

Pack Direction: 2/2


2510301935_HH-HH-16P-TYPE-C--Y495_C52209111.pdf
