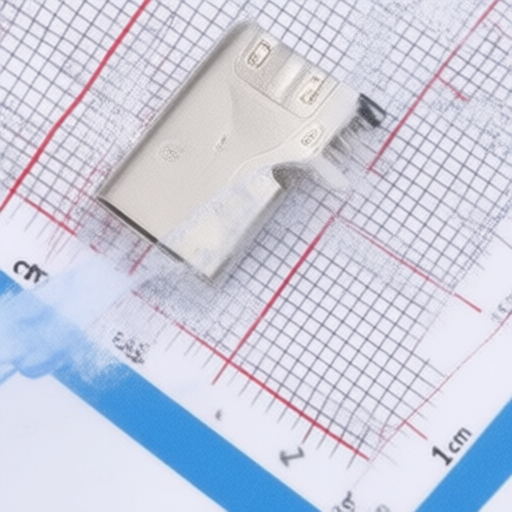

Durable HH HH 14P TYPE-C Y001 14 Pin Female Connector with Side Insertion and Stainless Steel Shells
Durable HH HH 14P TYPE-C Y001 14 Pin Female Connector with Side Insertion and Stainless Steel Shells
Specifications
Protocol Standard :
USB 2.0
Number of Contacts :
14P
length :
14mm
Detection color :
黑色
Operating temperature :
-40℃~+85℃
Connector Type :
Type-C
Connect-Disconnect Life :
1万次
Description :
USB 2.0 14P Type-C SMD USB, DVI, HDMI Connector Adapters RoHS
Mfr. Part # :
HH 14P TYPE-C (Y001)
Package :
SMD
Model Number :
HH 14P TYPE-C (Y001)
Description

Product Overview

This is a 14-pin Type-C female connector designed for side insertion with straight rear fork pins. It is constructed with high-temperature plastic housing, stainless steel mid-plate and front/back shells, and copper alloy contacts. The connector supports a current rating of 5A Max and a voltage rating of 20V Max, with a durability of 10,000 cycles. It is suitable for operating temperatures ranging from -40C to +85C.

Product Attributes

  • Brand: HH (implied by part numbering)
  • Model Series: Y001
  • Material - Housing: High temperature plastic (UL94 V-0, Black)
  • Material - Contact: Copper Alloy, T=0.15mm
  • Material - Mid Plate: Stainless Steel, T=0.15mm
  • Material - Front Shell: Stainless Steel, T=0.30mm
  • Material - Back Shell: Stainless Steel, T=0.20mm
  • Plating - Contacts: Au/Ni or Au/Sn/Ni-Plated (1u" or 3u" Au plated on mating area, Au plated or Matte Sn plated on solder area)
  • Plating - Front Shell: Ni 30u" Min. Under Plated
  • Plating - Back Shell: Ni 30u" Min. Under Plated
  • Plating - Mid Plate: Clear Only
  • Color: Black (Housing)
  • Certifications: RoHS

Technical Specifications

Specification Value
Connector Type TYPE-C 14P Female, Side Insertion, Straight Rear Fork Pins
Current Rating 5A Max
Voltage Rating 20V Max
Dielectric Withstanding Voltage 100V AC
Contact Resistance 40m Max.
Insulation Resistance 100M Min.
Mating Force 5~20N
Unmating Force 8~20N (6~20N after durability test)
Durability 10,000 Cycles
Operating Temperature -40C to +85C
Wetting Temperature 2655C, 50.5s
Housing Material Specification UL94 V-0, Black
Contact Plating Specification Ni 50u" Min. Under Plated Over All. Au Plated On The Mating Area. Au Plated Or Matte Sn Plated On The Solder Area.
Front Shell Plating Specification Ni 30u" Min. Under Plated Over All.
Back Shell Plating Specification Ni 30u" Min. Under Plated Over All.
Dimensions (Approx. - Key Features) 5.80, 7.000.15, 6.10, 8.94, 0.25, 1.900.20, 0.400.10, 14.000.25 (Signal Pin), 8.34+0.06 -0.02, 2.560.04, 3.66, 0.750.10, 2.860.10, 1.600.10, 1.000.10, 7.050.20, 0.900.10, 1.350.10
PCB Layout Tolerance (Unspecified) 0.05mm
Packaging - Tray PET, 338*238mm, 170 PCS/Tray
Packaging - Carton Corrugated Board, K=K, 515*365*160mm, 10200 PCS/Carton

2511211720_HH-HH-14P-TYPE-C--Y001_C52711235.pdf
