Durable HH HH 24P TYPE C Y044 24 Pin Female Connector for Electronic Applications Surface Mount Design
Durable HH HH 24P TYPE C Y044 24 Pin Female Connector for Electronic Applications Surface Mount Design
Specifications
Protocol Standard :
USB 3.1
Supplementary Features :
带定位柱
Number of Contacts :
24P
length :
9.85mm
Detection color :
黑色
Operating temperature :
-40℃~+85℃
Connector Type :
Type-C
Connect-Disconnect Life :
1万次
Description :
USB 3.1 24P Type-C SMD USB, DVI, HDMI Connector Adapters RoHS
Mfr. Part # :
HH 24P TYPE-C (Y044)
Package :
SMD
Model Number :
HH 24P TYPE-C (Y044)
Description

Product Overview

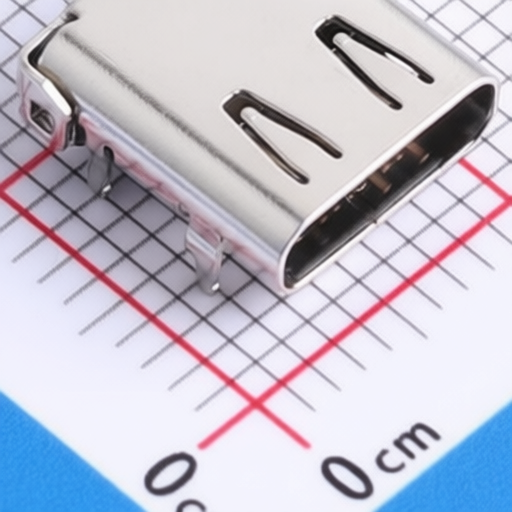

This HH 24P TYPE-C (Y044) is a 24-pin Type-C female connector designed for surface mounting with a length of 9.85mm. It features robust mechanical and electrical specifications, including a high durability rating of 10,000 cycles and a current rating of up to 5A for VBus pins. The connector is built with durable materials like LCP and C7025, ensuring reliable performance across a wide operating temperature range of -40C to +85C. Its design supports various signal pins and VBUS/GND connections, making it suitable for a range of electronic applications.

Product Attributes

  • Product Type: Type-C Receptacle
  • Model: HH 24P TYPE-C (Y044)
  • Mounting Type: Surface Mount (3M)
  • Housing Material: LCP (UL 94 V-0)
  • Contact Material: C7025
  • Shell Material: SUS304-1/2H
  • Finish: Au/50u"Ni Min. (Contacts), No Plating (Shell)
  • Color: BLACK (Housing)
  • Origin: Shenzhen Huihuan Technology Co., Ltd.
  • Certifications: RoHS

Technical Specifications

Specification Details
Mating Force 5-20N
Unmating Force (Initial) 8-20N
Unmating Force (Final) 6-20N
Durability 10,000 Cycles
Current Rating (VBus Pins) 5A
Current Rating (Vconn Pin) 1.25A
Current Rating (Other Pins) 0.25A
Voltage Rating 20V Max.
Dielectric Withstanding Voltage 100Vac
Contact Resistance 40m Ohms Max.
Insulation Resistance 100M Ohms Min.
Operating Temperature -40C to +85C
Salt Spray Test 48H Min. (No oxidation or rust)
Wetting Temperature 2655C, 50.5s
PCB Layout Thickness Tolerance 1.0~1.2mm, 0.05
Connector Length 9.85mm
Pin Count 24 Pins

2511211720_HH-HH-24P-TYPE-C--Y044_C52711226.pdf
