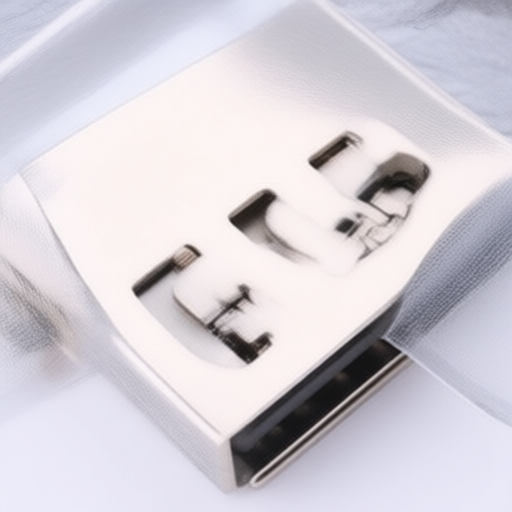

HH HH USB SMT 207 USB A F Connector with UL 94V 0 LCP Housing Black Glue Full Paste 1 0 Post Crimping
HH HH USB SMT 207 USB A F Connector with UL 94V 0 LCP Housing Black Glue Full Paste 1 0 Post Crimping
Specifications
Protocol Standard :
USB 2.0
Supplementary Features :
卷口
Number of Contacts :
4P
length :
14mm
Center Height :
-
Detection color :
黑色
Operating temperature :
-25℃~+85℃
Connector Type :
Type-A
Connect-Disconnect Life :
1.5千次
Description :
USB 2.0 4P Type-A SMD USB, DVI, HDMI Connector Adapters RoHS
Mfr. Part # :
HH-USB-SMT-207
Package :
SMD
Model Number :
HH-USB-SMT-207
Description

Product Overview

This product is a USB A/F connector with full paste 1.0 post crimping and black glue, identified by the model USB-SMT-207. It is designed for surface mount technology (SMT) applications and adheres to RoHS standards. The connector features specific electrical characteristics including a current rating of 1.5A per contact terminal and a voltage rating of 30V DC. It also boasts low contact resistance and high insulation resistance. Mechanically, it offers defined mate and unmate forces, along with terminal retention strength. The materials used include UL 94V-0 LCP for the housing and Copper Alloy C2680 for the contact terminals, with tin plating on solder tails and nickel plating on the shell.

Product Attributes

  • Product Name: USB A/F Full Paste 1.0 Post Crimping Black Glue
  • Model: USB-SMT-207
  • Certifications: RoHS
  • Origin: Dongguan Huihuang Precision Co., Ltd.
  • Housing Material: UL 94V-0 LCP (beige/Black)
  • Contact Material: Copper Alloy C2680
  • Contact Finish: Tin On Solder Tails
  • Shell Material 1: Nickel Plating
  • Shell Material 2: Copper Alloy C2680/SPCC
  • Packaging Quantity: 400 PCS/reel, 10 reels/box (4000 Pcs/box)

Technical Specifications

Specification Details
Electrical Characteristics:
Rated Current 1.5A/contact terminal
Rated Voltage 30V DC
Contact Resistance 30 milliohms MAX
Insulation Resistance 1000 MEGA ohms MIN
Dielectric Strength 500 V AC AT Sea Level
Mechanical Properties:
Mate Force 3.57kgf (MAX)
Unmate Force 1.02kgf (MIN)
Terminal Retention 1.2kgf (MIN)
Dimensions (mm):
Length 16.20 0.25
Width 14.80 0.25
Height 7.05 0.15
Pitch 2.50
Contact Thickness 1.00 0.05
Shell Thickness 0.20 (implied by 10.200.25 total length and other dimensions)
Packaging Requirements:
Reel Quantity 400 PCS/reel
Box Quantity 10 reels/box (4000 Pcs/box)
Cover Tape Peel Force 20-150gf

2510161110_HH-HH-USB-SMT-207_C52120964.pdf

Send your message to this supplier
Send Now
