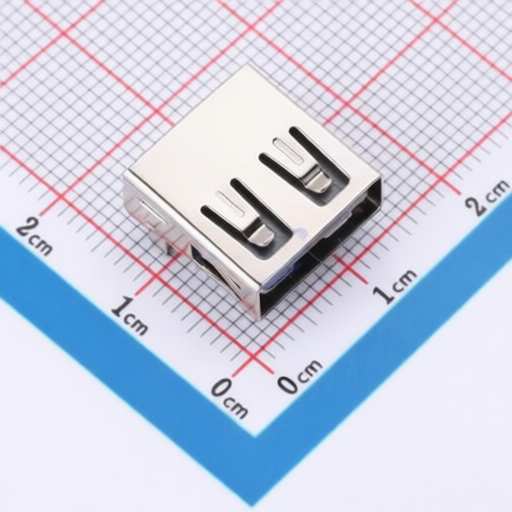

HH HH USB SMT 003 SMT connector offering mechanical and electrical performance with gold plated contacts
HH HH USB SMT 003 SMT connector offering mechanical and electrical performance with gold plated contacts
Specifications
Protocol Standard :
USB 2.0
Supplementary Features :
-
Number of Contacts :
4P
length :
13.7mm
Center Height :
-
Detection color :
黑色
Operating temperature :
-25℃~+85℃
Connector Type :
Type-A
Connect-Disconnect Life :
1.5千次
Description :
USB 2.0 4P Type-A SMD USB, DVI, HDMI Connector Adapters RoHS
Mfr. Part # :
HH-USB-SMT-003
Package :
SMD
Model Number :
HH-USB-SMT-003
Description

Product Overview

This product is a connector designed for SMT applications, featuring high-temperature thermoplastic housing and copper alloy contacts. It offers reliable electrical and mechanical performance, suitable for various industrial uses. The product is manufactured by Dongguan Huihuan Precision Co., Ltd. and adheres to RoHS standards.

Product Attributes

  • Brand: USB-SMT-003
  • Origin: Dongguan, China
  • Housing Material: High Temperature Thermoplastics, UL 94V-0 LCP
  • Housing Color: Beige/Black
  • Contact Material: Copper Alloy C2680
  • Contact Plating: Gold in Mating Area; Tin On Solder Talls
  • Shell Material: Copper Alloy C2680/SPCC
  • Shell Plating: Nickel Plating
  • Certification: RoHS
  • Packaging: 500 PCS/Reel, 10 Reels/Carton (5000 Pcs/Carton)
  • Tape Peel Force: 20-130gf

Technical Specifications

Specification Value
Electrical Characteristics:
Current Rating 1.5A/contact terminal
Voltage Rating 30V DC
Contact Resistance 30 milliohms MAX
Dielectric Withstanding Voltage 500 V AC AT Sea Level
Insulation Resistance 1000 MEGA ohms MIN
Mechanical Performance:
Connector Mate and Unmate Force (Mate force) 3.57kgf (MAX)
Connector Mate and Unmate Force (Unmate force) 1.02kgf (MIN)
Terminal Retention 1.2kgf (MIN)
Dimensions (Approximate):
Hole Diameter 1.00
Pitch 1 2.00
Pitch 2 2.50
Pitch 3 2.50
Width 1 1.10
Width 2 3.80
Length 12.80
