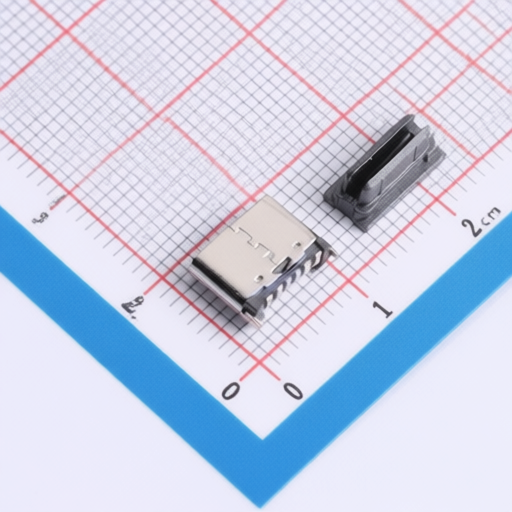

HH HH 6P TYPE C Y059 Type C Female Connector 6 Pin with Multiple Plating Options and RoHS Compliance
HH HH 6P TYPE C Y059 Type C Female Connector 6 Pin with Multiple Plating Options and RoHS Compliance
Specifications
Number of Contacts :
6P
length :
6.5mm
Detection color :
黑色
Operating temperature :
-40℃~+85℃
Connector Type :
Type-C
Connect-Disconnect Life :
3千次
Description :
6P Type-C SMD USB, DVI, HDMI Connector Adapters RoHS
Mfr. Part # :
HH 6P TYPE-C (Y059)
Package :
SMD
Model Number :
HH 6P TYPE-C (Y059)
Description

Product Overview

This product line features Type-C 6-pin female connectors designed for various applications. Available in multiple heights (5.00mm to 7.35mm) and configurations, these connectors are constructed with LCP housing and molding, C5191R-H contacts, and SUS shells. They offer a robust solution for data and power transmission, suitable for integration into electronic devices and systems requiring reliable Type-C connectivity.

Product Attributes

  • Brand: (Shenzhen Huihuan Technology Co., Ltd.)
  • Product Type: Type-C Female Connector
  • Contact Type: 6-Pin
  • Housing Material: LCP (UL94 V-0)
  • Contact Material: C5191R-H (Phosphor Copper)
  • Shell Material: SUS (Stainless Steel), T=0.30mm
  • Color Options: Black, White
  • Plating Options: G/F (Half Gold Mist Tin), 3u" (Half Gold Mist Tin), Bright Nickel
  • Certifications: RoHS
  • Origin: China

Technical Specifications

Model Number Description Height (H) Dimension A Dimension B Dimension C Packaging Quantity/REEL Packaging Quantity/Box
1006-FGB051 TPC 6Pin, Vertical, Fully Encapsulated, Flat Paste, Plastic, 7.35H 7.35mm 10.35mm 6.10mm 0.80mm 1200PCS 12000PCS/Box
1006-FGB052 TPC 6Pin, Vertical, Fully Encapsulated, Flat Paste, Plastic, 6.80H 6.80mm 8.75mm 5.60mm 1.30mm 1200PCS 12000PCS/Box
1006-FGB053 TPC 6Pin, Vertical, Fully Encapsulated, Flat Paste, Plastic, 6.50H 6.50mm 8.15mm 5.25mm 0.80mm 1200PCS 12000PCS/Box
1006-FGB054 TPC 6Pin, Vertical, Fully Encapsulated, Flat Paste, Plastic, 5.50H 5.50mm 7.35mm 4.25mm 1.30mm 1250PCS 12000PCS/Box
1006-FGB055 TPC 6Pin, Vertical, Fully Encapsulated, Flat Paste, Plastic, 5.0H 5.00mm 6.80mm 3.75mm 0.80mm 1250PCS 12000PCS/Box
1006-FGB014 TPC 6Pin, Vertical, Semi-Encapsulated, Exposed Copper, Flat Paste, Plastic, 6.00H 6.00mm - - - 1200PCS 12000PCS/Box
1006-FGB139 TPC 6Pin, Vertical, Fully Encapsulated, Flat Paste, Plastic, 6.50H 6.50mm - - - 1250PCS 12000PCS/Box
1006-FAW001 TPC 6Pin, Vertical, Fully Encapsulated, Flat Paste, Plastic, 6.80H 6.80mm - - - 1250PCS 12000PCS/Box
General Specifications:
Mating Force 5~20N
Unmating Force 6~20N
Durability 3000 Cycles
Current Rating 3A Max.
Voltage Rating 20V Max.
Dielectric Withstanding Voltage 100V AC
Contact Resistance 40m Ohms Max.
Insulation Resistance 100M Ohms Min.
Operating Temperature -40C ~ +85C
Wetting Temperature 2655C, 50.5s
