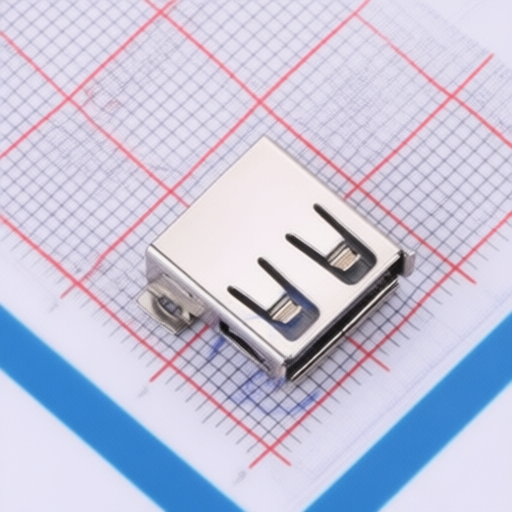

electrical connector HH HH-USB-SMT-201 with UL 94V-0 rated PBT LCP housing and copper alloy contacts
electrical connector HH HH-USB-SMT-201 with UL 94V-0 rated PBT LCP housing and copper alloy contacts
Specifications
Protocol Standard :
USB 2.0
Supplementary Features :
卷口
Number of Contacts :
4P
length :
14mm
Center Height :
-
Detection color :
黑色
Operating temperature :
-25℃~+85℃
Connector Type :
Type-A
Connect-Disconnect Life :
1.5千次
Description :
USB 2.0 4P Type-A SMD USB, DVI, HDMI Connector Adapters RoHS
Mfr. Part # :
HH-USB-SMT-201
Package :
SMD
Model Number :
HH-USB-SMT-201
Description

Product Overview

This product is a connector designed for various industrial applications. It features robust electrical and mechanical characteristics, including a rated current of 1.5A per contact terminal and a voltage rating of 30V DC. The connector is constructed from high-temperature thermoplastic housing (UL 94V-0 rated PBT/LCP) and a copper alloy contact (C2680). The contact finish includes plated gold in the mating area and tin on solder tails, with nickel plating on the shell. It is designed for reliable performance with specific insertion and extraction forces, and terminal retention strength.

Product Attributes

  • Origin: Dongguan Hui Huan Precision Co., Ltd.
  • Housing Material: High Temperature Thermoplastics, UL 94V-0 PBT/LCP
  • Contact Material: Copper Alloy C2680
  • Contact Finish: Plated Gold in Mating Area; Tin On Solder Talls
  • Shell Material: Copper Alloy C2680/SPCC
  • Shell Finish: Nickel Plating
  • Housing Color: White/Black
  • Packaging: 400 PCS/Reel, 10 Reels/Carton (4000 Pcs/Carton)
  • Tape Peel Force: 20-150gf

Technical Specifications

Specification Details
Current Rating 1.5A/contact terminal
Voltage Rating 30V DC
Contact Resistance 30 milliohms MAX
Dielectric Withstanding Voltage 500 V AC AT Sea Level
Insulation Resistance 1000 MEGA ohms MIN
Connector Mate Force 3.57kgf (MAX)
Connector Unmate Force 1.02kgf (MIN)
Terminal Retention 1.2kgf (MIN)
Dimensions (Overall) Refer to diagram (values include 7.050.15, 13.800.25, 14.500.20, 16.200.25, 3.050.1, 7.050.15, 13.100.20, 5.72, 14.800.25, 1.000.05, 9.100.20, 5.000.1, 4.35, 12.500.10, 9.800.20, 3.70, 5.30, 5.00, 1.30*2, 3.80, 1.10, 2.00, 2.50, 2.50, 2.50, 2.00, 2.50, 1.000.05, 6.900.15, 14.500.1, 2.000.1, 7.050.15)
