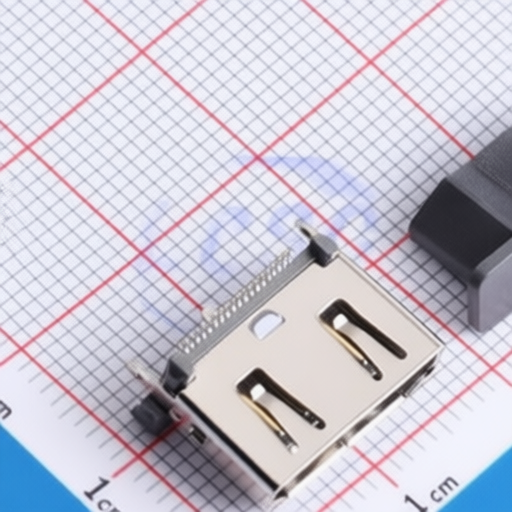

Vertical HDMI A Type Connector HH HDMI AF002 with Gold Finished Contacts and 1050mm Connector Height
Vertical HDMI A Type Connector HH HDMI AF002 with Gold Finished Contacts and 1050mm Connector Height
Specifications
Description :
SMD USB, DVI, HDMI Connector Adapters RoHS
Mfr. Part # :
HDMI-AF002
Package :
SMD
Model Number :
HDMI-AF002
Description

Product Overview

This product is an HDMI A Type connector, specifically a vertical receptacle with a height of 10.50mm. Designed for reliable electrical connections, it features robust materials and adheres to RoHS compliance. The connector is suitable for applications requiring a 0.5 Amp current rating and is built to withstand environmental conditions ranging from -55C to +105C.

Product Attributes

  • Brand: (Hui Huan Technology)
  • Model Series: HDMI-AF002
  • Connector Type: HDMI A Type Receptacle
  • Mounting Type: Vertical (Right Angle)
  • Certifications: RoHS
  • Material - Insulator: LCP UL-94V0
  • Material - Cover: LCP UL-94V0
  • Material - Shell: C2680, Nickel Finished
  • Material - Contact: C5191, Gold Finished

Technical Specifications

Specification Details
Model Number HDMI-AF002
Connector Height (H) 10.50mm
Contact Current Rating 0.5 Amps
Contact Resistance 20 Milliohms MAX.
Dielectric Withstanding Voltage 500 VAC MIN.
Insulation Resistance 100 Megaohms MIN.
Mating Force 4.5 Kgf MAX.
Unmating Force 1.0 Kgf MIN.
Temperature Rating -55C ~ +105C
Packaging Unit Reel (3000 pcs)
Reel Dimensions 10*6.3m
Outer Box Dimensions 390*390*380 mm (for 10 reels)

2510301741_HH-HDMI-AF002_C51897904.pdf
