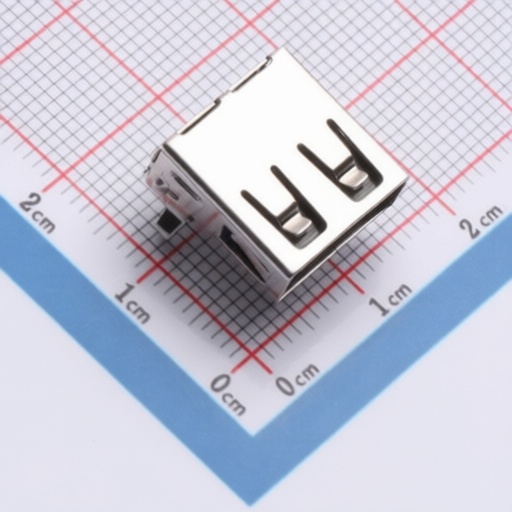

HH HH USB DIP 003 Connector with Certified Electrical Specifications and Durable Material Composition
HH HH USB DIP 003 Connector with Certified Electrical Specifications and Durable Material Composition
Specifications
Protocol Standard :
USB 2.0
Supplementary Features :
-
Number of Contacts :
4P
length :
14mm
Center Height :
-
Detection color :
黑色
Operating temperature :
-25℃~+85℃
Connector Type :
Type-A
Connect-Disconnect Life :
1.5千次
Description :
USB 2.0 4P Type-A Through Hole USB, DVI, HDMI Connector Adapters RoHS
Mfr. Part # :
HH-USB-DIP-003
Package :
Through Hole
Model Number :
HH-USB-DIP-003
Description

Product Overview

This product is a connector designed for electrical applications, featuring robust materials and precise specifications for reliable performance. It is suitable for various industrial uses where electrical connectivity is crucial.

Product Attributes

  • Housing Material: High Temperature Thermoplastics, UL 94V-0
  • Housing Color: White/Black
  • Contact Material: Copper Alloy C2680
  • Contact Plating: Gold in Mating Area; Tin On Solder Talls
  • Shell Plating: Nickel Plating
  • Shell Material: Copper Alloy C2680/SPCC
  • Certifications: RoHS, IQC, IPQC

Technical Specifications

Specification Details
Current Rating 1.5A/contact terminal
Voltage Rating 30V DC
Contact Resistance 30 milliohms MAX
Dielectric Withstanding Voltage 500 V AC AT Sea Level
Insulation Resistance 1000 MEGA ohms MIN
Connector Mate Force 3.57kgf (MAX)
Connector Unmate Force 1.02kgf (MIN)
Terminal Retention 1.2kgf (MIN)
Dimensions (approximate, based on visual representation) Length: 15.500.30 mm, Width: 10.20 mm, Height: 14.00 mm

2510161110_HH-HH-USB-DIP-003_C52120974.pdf
