SMA Female to MCX Female RF Coaxial Adapter – Gold Plated
SMA Female to MCX Female RF Coaxial Adapter – Gold Plated
SMA Female to MCX Female RF Coaxial Adapter – Gold Plated
SMA Female to MCX Female RF Coaxial Adapter – Gold Plated
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C,T/T,Western Union
Model Number :
SMA/MCX-KK
Certification :
ISO9001, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
4-8weekd
Supply Ability :
120000pcs/year
Product name :
SMA Female to MCX Female RF Coaxial Adapter – Gold Plated
Material :
Brass
Plating :
Gold
Durability 500 times :
500 times
Description

SMA Female to MCX Female RF Coaxial Adapter – Gold Plated

Product Overview

RF coaxial adapters are essential for ensuring seamless signal transfer between different connector types or within the same series. They serve as a reliable bridge, enabling accurate and efficient interconnection.

Application Scope:
Widely used in RF testing environments, instrumentation, and cable assemblies—especially for system conversion and connector compatibility in testing setups.

Product Features:

Interface: SMA Female to MCX Female

Enables conversion between SMA male and MCX male connectors

Compact size and lightweight design

High reliability and consistent signal performance

Gold-plated contacts for superior conductivity and corrosion resistance

Ideal for precision test cables and RF instrumentation

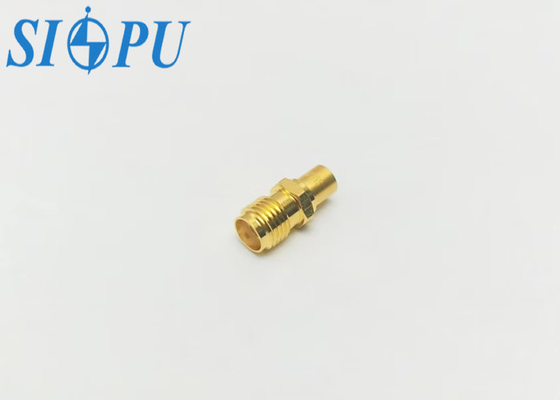

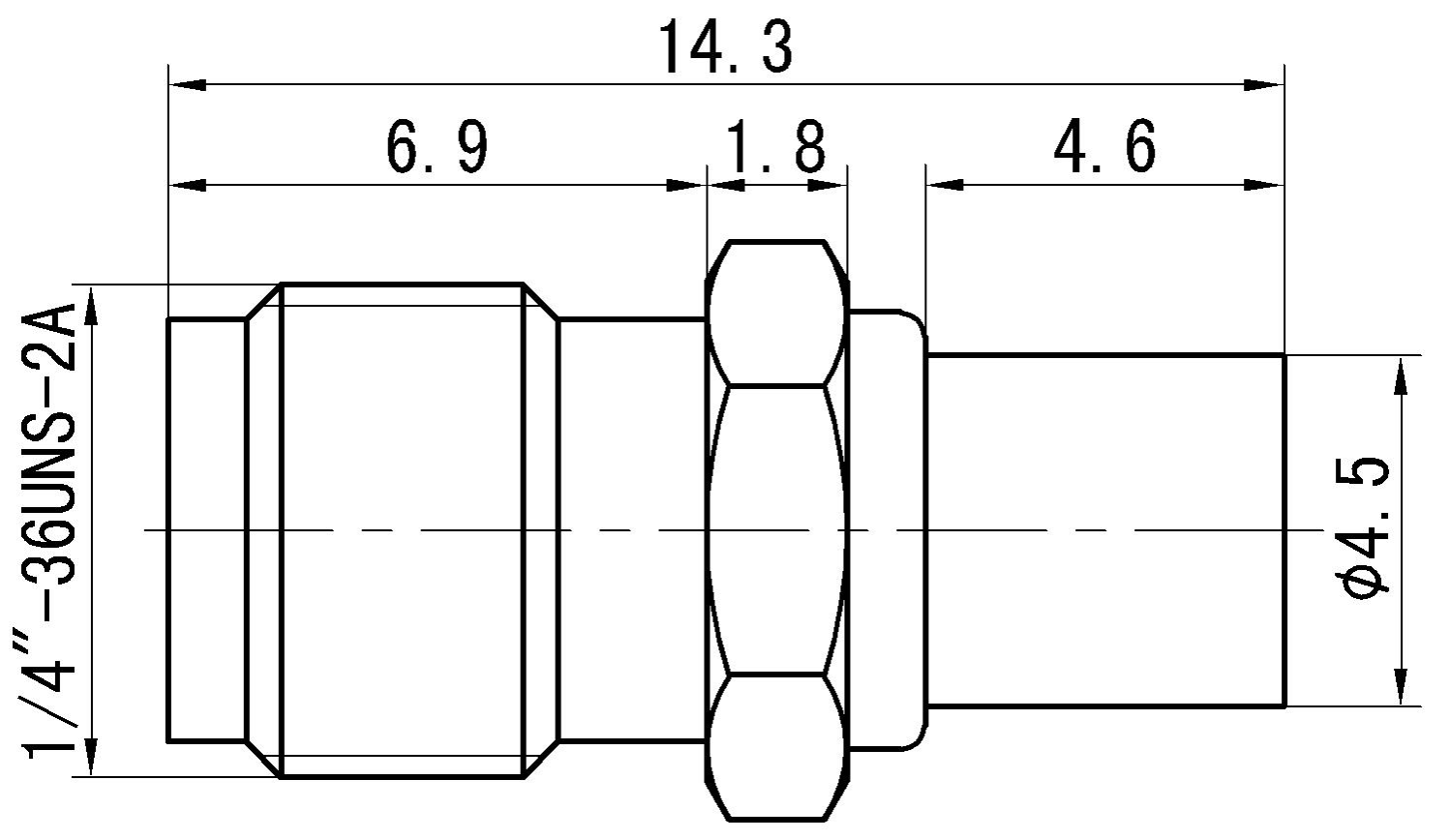

Product Appearance

SMA Female to MCX Female RF Coaxial Adapter – Gold Plated

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-6GHz

Dielectric withstanding voltage

 750V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB

Contact resistance

 Center conductor ≤5.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,gold plating / /

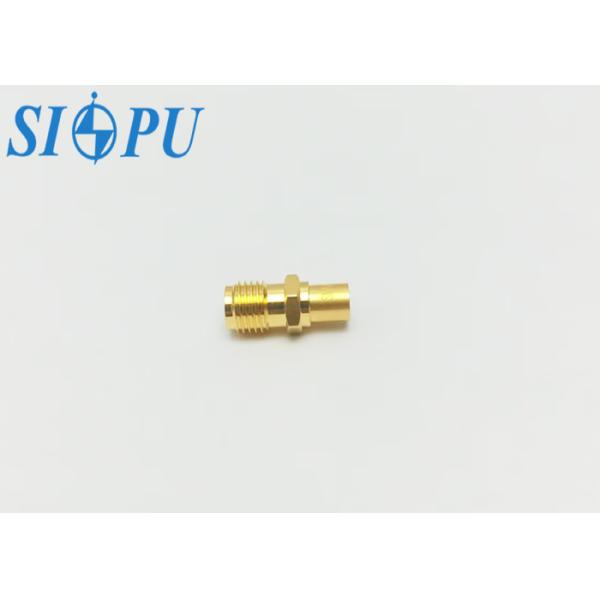

Product Image Gallery

SMA Female to MCX Female RF Coaxial Adapter – Gold PlatedSMA Female to MCX Female RF Coaxial Adapter – Gold Plated
