SMA Male to SSMA Male RF Coaxial Adapter – Stainless Steel (SMA(J)-SSMA(J))
SMA Male to SSMA Male RF Coaxial Adapter – Stainless Steel (SMA(J)-SSMA(J))
SMA Male to SSMA Male RF Coaxial Adapter – Stainless Steel (SMA(J)-SSMA(J))
SMA Male to SSMA Male RF Coaxial Adapter – Stainless Steel (SMA(J)-SSMA(J))
Specifications
Brand Name :
SIPU
Model Number :
SMA/SSMA-JJG
Certification :
ISO9001, RoHS, CE
Place of Origin :
CHINA
MOQ :
100
Price :
Discuss
Payment Terms :
L/C,T/T,Western Union
Packaging Details :
Carton
Delivery Time :
6-8weekd
Supply Ability :
120000pcs/year
Product name :
SMA Male to SSMA Male RF Coaxial Adapter – Stainless Steel (SMA(J)-SSMA(J))
Material :
Stainless steel
Plating :
Passivation
Durability 500 times :
500 times
Description

SMA Male to SSMA Male RF Coaxial Adapter – Stainless Steel (SMA(J)-SSMA(J))

Product Overview
RF coaxial adapters in various specifications ensure proper connectivity between different series of connectors or within the same series. They typically function as bridging components, maintaining signal integrity across interface transitions.

Application Scope:
Commonly used in test cables, measurement instruments, and RF systems for signal conversion and interconnection between components.

Product Features:

Interfaces compatible with both SMA and SSMA series connectors

Compact size, ideal for space-constrained environments

High reliability and mechanical durability

Excellent electrical performance with low insertion loss and stable impedance

Suitable for high-frequency and precision RF applications

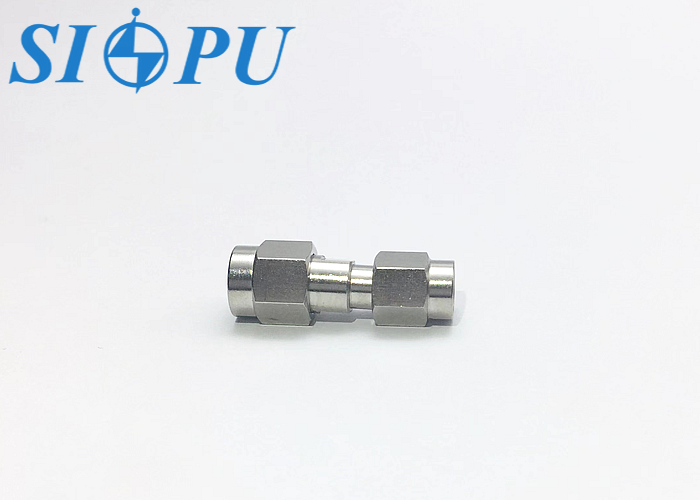

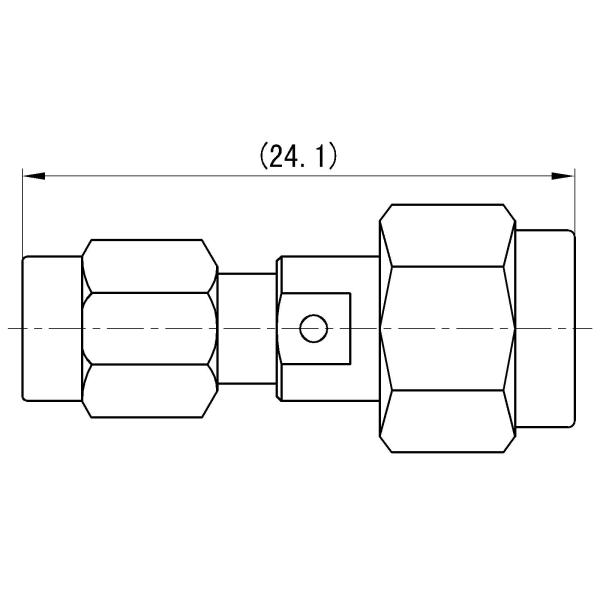

Product Appearance

SMA Male to SSMA Male RF Coaxial Adapter – Stainless Steel (SMA(J)-SSMA(J))

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 750V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Brass, gold plating Insulating medium PTFE

Outer conductor

Stainless steel, passivating

 Sealing ring /

Product Image Gallery

SMA Male to SSMA Male RF Coaxial Adapter – Stainless Steel (SMA(J)-SSMA(J))SMA Male to SSMA Male RF Coaxial Adapter – Stainless Steel (SMA(J)-SSMA(J))
