RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)
RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)
RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)
RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)
RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)
RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C,T/T,Western Union
Model Number :
N/SMA-JK
Certification :
ISO9001, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8weekd
Supply Ability :
120000pcs/year
Product name :
RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)
Material :
Brass
Plating :
Nickle
Durability 500 times :
500 times
Description

RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)

Product Overview

RF coaxial adapters of various specifications ensure proper interconnection between different connector series or within the same series. They serve as essential bridging components in RF systems.

Application Scope:
Widely used for system conversion and interconnection, particularly in test instruments, test cables, and RF modules.

Product Features:

Interface: N Female to SMA Male

Strong environmental resistance for stable operation in demanding conditions

High reliability and low insertion loss

Excellent electrical performance with consistent impedance matching

Suitable for laboratory testing, communication equipment, and RF setups

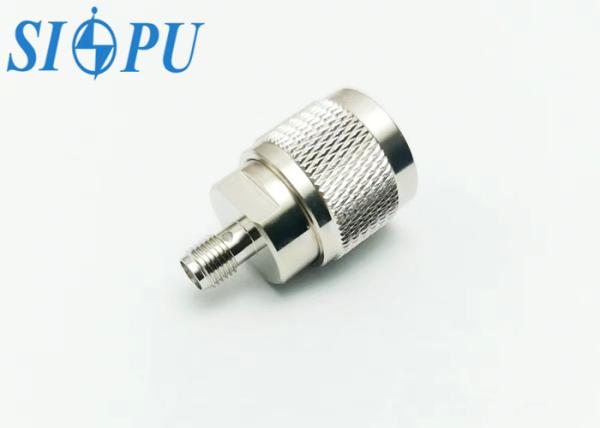

Product Appearance

RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-11GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, nickel plating Sealing ring Silicon rubber

Product Image Gallery

RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)RF Coaxial Adapter – N Male to SMA Female (Model: N/SMA-JK)
