RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)
RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)
RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)
RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)
RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)
RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C,T/T,Western Union
Model Number :
N/SMA-KJ
Certification :
ISO9001, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8weekd
Supply Ability :
120000pcs/year
Product name :
RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)
Material :
Brass
Plating :
Nickle
Durability 500 times :
500 times
Description

RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)

Product Overview

This RF coaxial adapter ensures seamless and reliable interconnection between different series or identical series of RF connectors, serving as a crucial bridge in a wide range of RF systems.

Application Scope:
Commonly used for signal conversion and connectivity in RF test cables, instruments, and communication systems.

Product Features:

Interfaces: N Female to SMA Male

Delivers excellent electrical performance with minimal signal loss

Engineered for high reliability and strong environmental durability

Ideal for lab testing, field use, and precision RF applications

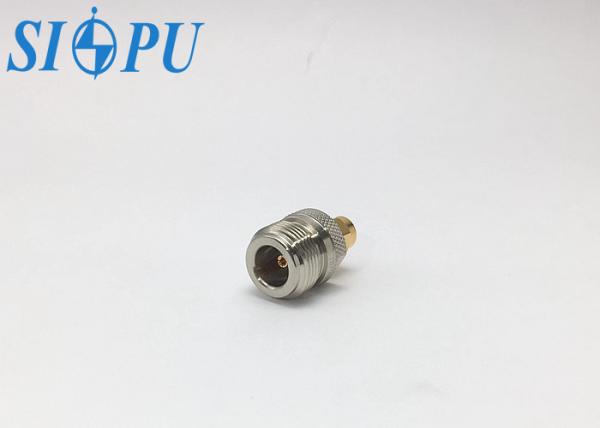

Product Appearance

RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-11GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,nickel plating Sealing ring Silicon rubber

Product Image Gallery

RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)
