SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)
SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)
SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)
SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)
SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)
SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C,T/T,Western Union
Model Number :
SMA/SMP-KK2
Certification :
ISO9001 RoHS
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8weekd
Supply Ability :
120000pcs/year
Product name :
SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)
Material :
Beryllium bronze
Plating :
Gold
Durability 500 times :
500 times
Description

SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)

Product Overview

RF coaxial adapters ensure accurate and efficient interconnection between different connector series or within the same series. They serve as critical bridge components in RF systems.

Scope of Application:
Widely used in system integration, signal conversion, and RF test environments—including test instruments and test cables.

Product Features:

Interfaces: SMA Female to SMP Female

Compact design for space-constrained applications

Reliable signal transmission with excellent electrical performance

Easy mating and demating for frequent connections

Ideal for high-frequency and modular setups

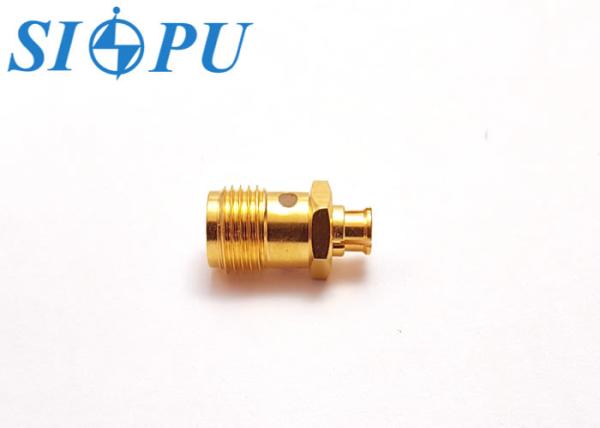

Product Appearance

SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 500V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.07√F(GHz)dB

Contact resistance

 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PTFE

Outer conductor

Beryllium bronze,gold plating

/

/

Product Image Gallery

SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)
