BNC Male to SMA Male RF Coaxial Adapter – PTFE Insulating Medium
BNC Male to SMA Male RF Coaxial Adapter – PTFE Insulating Medium
BNC Male to SMA Male RF Coaxial Adapter – PTFE Insulating Medium
BNC Male to SMA Male RF Coaxial Adapter – PTFE Insulating Medium
BNC Male to SMA Male RF Coaxial Adapter – PTFE Insulating Medium
BNC Male to SMA Male RF Coaxial Adapter – PTFE Insulating Medium
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
50
Payment Terms :
L/C,T/T,Western Union
Certification :
ISO9001 RoHS
Price :
＄1.5-3.5
Packaging Details :
master carton
Delivery Time :
5-8weekd
Supply Ability :
120000pcs/year
Model Number :
BNC/SMA-JJ
Characteristic impedance :
50Ω
Dielectric withstanding voltage :
500V
Insulation resistance :
≥1000MΩ
Center conductor :
≤10mΩ
Outer conductor :
≤5.0mΩ
Temperature range :
-40～+90℃
Frequency range :
DC-6GHz
VSWR :
≤1.4
Insertion loss :
≤0.1dB
Durability :
500 times
Insulating medium :
PTEE
Durability 500 times :
500 times
Description

BNC Male to SMA Male RF Coaxial Adapter (BNC(J)–SMA(J))

Product Overview

RF coaxial adapters of various specifications are essential components that ensure proper signal transfer between connectors of the same or different series. They typically serve as bridging elements to enable seamless interconnection across diverse RF systems.

Application Scope:


Commonly used for system conversion and connection in applications such as video signal transmission, test cables, and electronic testing instruments.

Product Features:

Interfaces: BNC female to SMA female

Excellent electrical performance with minimal insertion loss

Bayonet and threaded coupling mechanisms ensure secure and stable connections

Strong environmental resistance for demanding operating conditions

High reliability and long service life

Ideal for hybrid RF systems requiring inter-series connectivity

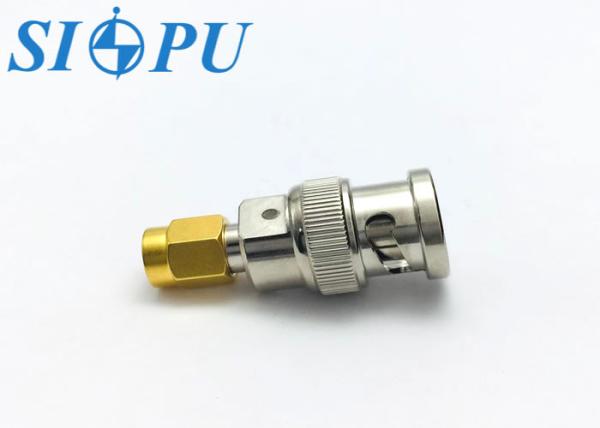

Product Appearance

BNC Male to SMA Male RF Coaxial Adapter – PTFE Insulating Medium

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-4GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.5

Insulation resistance

 5000MΩ Insertion loss 1.1F(GHz)dB

Contact resistance

 Center conduct 3.0mΩ Mechanical property
Outer 2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Brass, gold plating Insulating medium PTFE

Outer conductor

 Brass, nickel plating Sealing ring Silicon rubber

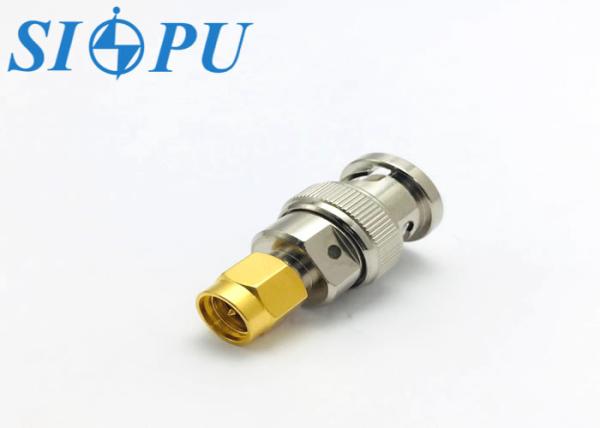

Product Image Gallery

BNC Male to SMA Male RF Coaxial Adapter – PTFE Insulating MediumBNC Male to SMA Male RF Coaxial Adapter – PTFE Insulating Medium
