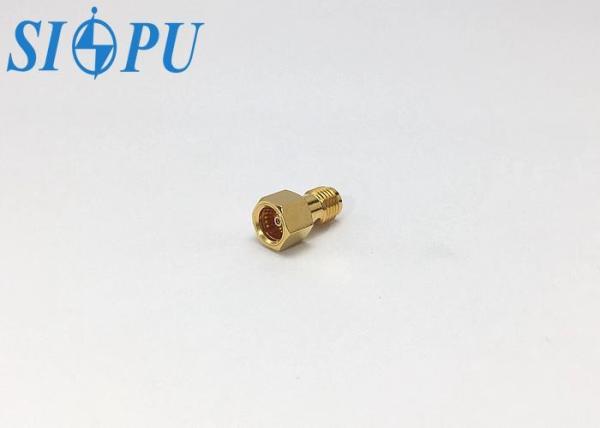

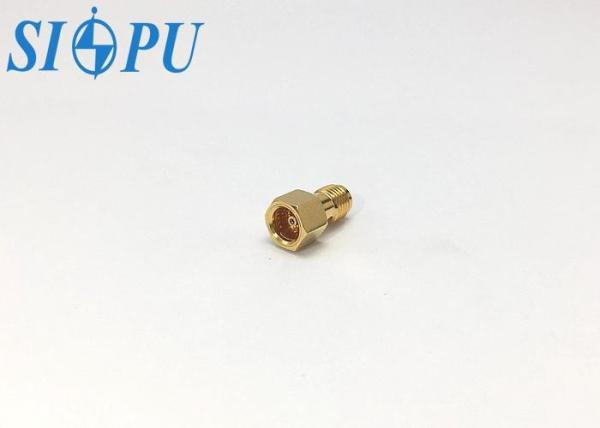

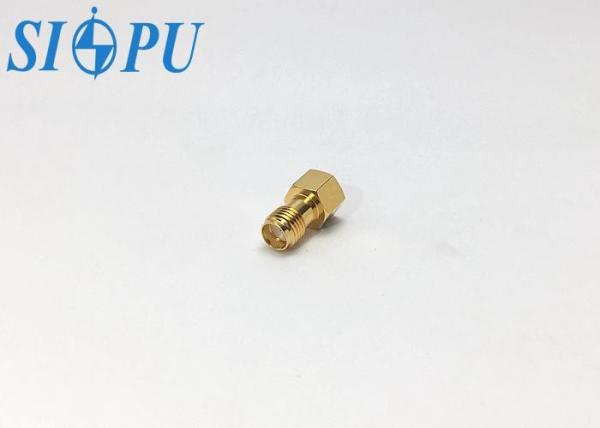

BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)
BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)
BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)
BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)
BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)
BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C,T/T,Western Union
Model Number :
BMA/SMA-KK
Certification :
ISO9001, RoHS, CE
Supply Ability :
120000pcs/year
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8weekd
Product name :
BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)
Material :
Brass
Plating :
Gold
Durability 500 times :
500 times
Description

BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)

Product Overview

RF coaxial adapters are essential for enabling seamless transitions between connectors of the same or different series. They act as bridge components to ensure proper connectivity in RF systems.

Applications
Commonly used in test instruments, RF test cables, and system conversion setups across telecom, aerospace, and industrial applications.

Product Features

Interfaces: BMA Male to SMA Male

Supports wide frequency bandwidth with minimal signal loss

Delivers excellent electrical performance and high signal integrity

Compact, robust design offering long-term reliability

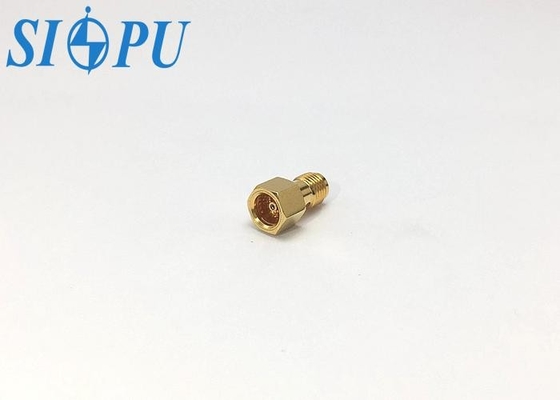

Product Appearance

BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)

Important Technical Parameters

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-18GHz

Dielectric withstanding voltage

 1000V

VSWR

 ≤1.08+0.012F(GHz)

Insulation resistance

 ≥5000MΩ

Insertion loss

≤0.05√F(GHz)dB

Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500 times

Materials and Surface Treatment

Center conductor Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

Brass, gold plating

 / /

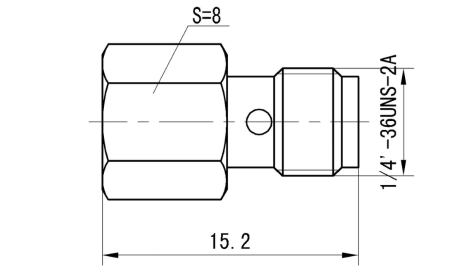

Product Image Gallery

BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)
