2.92mm Male to 2.4mm Female RF Coaxial Adapter (2.92(J)–2.4(K))
2.92mm Male to 2.4mm Female RF Coaxial Adapter (2.92(J)–2.4(K))
2.92mm Male to 2.4mm Female RF Coaxial Adapter (2.92(J)–2.4(K))
2.92mm Male to 2.4mm Female RF Coaxial Adapter (2.92(J)–2.4(K))
2.92mm Male to 2.4mm Female RF Coaxial Adapter (2.92(J)–2.4(K))
2.92mm Male to 2.4mm Female RF Coaxial Adapter (2.92(J)–2.4(K))
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C,T/T,Western Union
Model Number :
2.92/2.4-JK
Certification :
ISO9001, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8weekd
Supply Ability :
120000pcs/year
Product name :
2.92mm Male to 2.4mm Female RF Coaxial Adapter (2.92(J)–2.4(K))
Material :
Brass
Plating :
Gold
Durability 500 times :
500 times
Description

2.92mm Male to 2.4mm Female RF Coaxial Adapter (2.92(J)–2.4(K))

Product Overview

Each type of RF coaxial adapter plays a critical role in ensuring proper signal transfer between connectors of the same or different series. These adapters serve as bridging components that maintain signal continuity and mechanical compatibility across RF systems.

Application Scope:
Widely used in system interconnections and signal conversions, especially in test instruments, measurement setups, and RF test cables.

Product Features:

Interface: 2.92mm female to 2.4mm male

Compact size, ideal for high-density or space-limited environments

High reliability with robust mechanical and electrical performance

Excellent frequency response and low insertion loss

Suitable for high-frequency precision applications up to 40 GHz

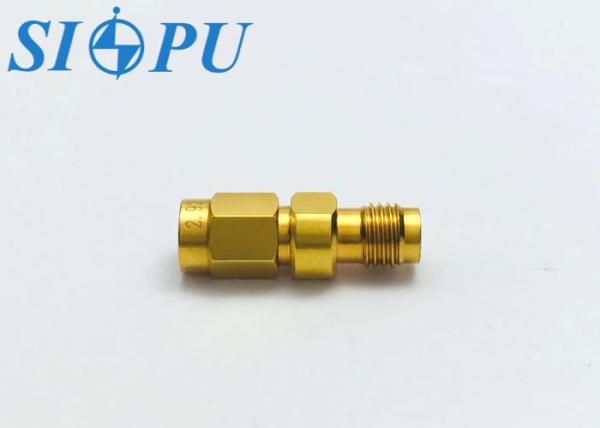

Product Appearance

2.92mm Male to 2.4mm Female RF Coaxial Adapter (2.92(J)–2.4(K))

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-40GHz

Dielectric withstanding voltage

 500V VSWR ≤1.05+0.008F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤4.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PEI

Outer conductor

 Brass,gold plating Sealing ring Silicon rubber

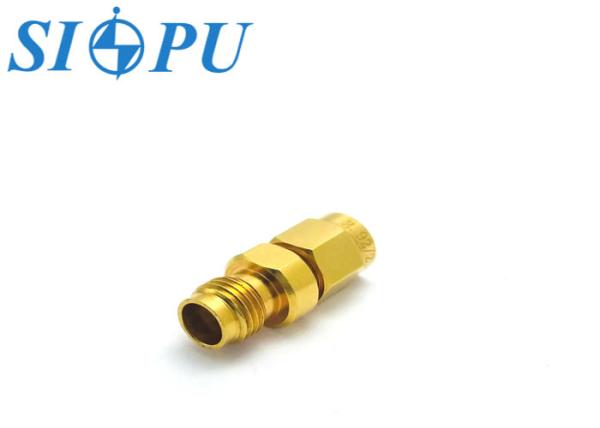

Product Image Gallery

2.92mm Male to 2.4mm Female RF Coaxial Adapter (2.92(J)–2.4(K))2.92mm Male to 2.4mm Female RF Coaxial Adapter (2.92(J)–2.4(K))
