SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)
SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)
SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)
SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)
SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)
SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C,T/T,Western Union
Model Number :
SMA/SSMA-JK
Certification :
ISO9001, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8weekd
Supply Ability :
120000pcs/year
Product name :
SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)
Material :
Brass
Plating :
Gold
Durability 500 times :
500 times
Description

SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)

Product Overview

RF coaxial adapters are essential components for enabling correct connections between different or same-series RF connectors, serving as reliable bridge elements in high-frequency systems.

Application Scope
Widely used for interface conversion and system connectivity, particularly in RF testing environments, such as test instruments and measurement cables.

Product Features

Interface: SMA Male to SSMA Female

Compact design with high mechanical and electrical precision

Excellent performance across a wide frequency range

High reliability and durability for repeated use

Ideal for compact systems requiring stable signal transmission

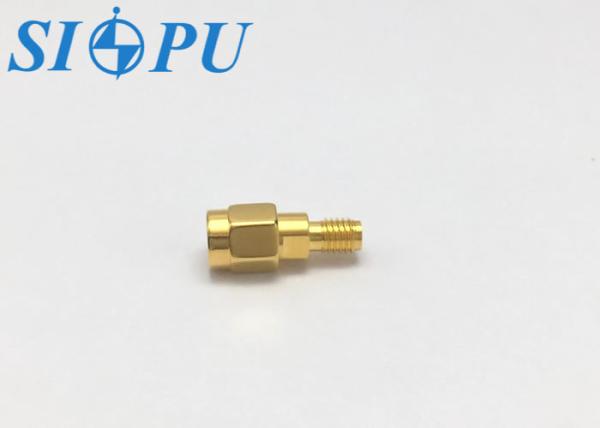

Product Appearance

SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 750V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,gold plating Sealing ring /

Product Image Gallery

SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)SMA Male To SSMA Female RF Coaxial Adapter SMA(J)-SSMA-(K)
