RF Coaxial Cable Adapter – SMA Female to SSMB Female
RF Coaxial Cable Adapter – SMA Female to SSMB Female
RF Coaxial Cable Adapter – SMA Female to SSMB Female
RF Coaxial Cable Adapter – SMA Female to SSMB Female
RF Coaxial Cable Adapter – SMA Female to SSMB Female
RF Coaxial Cable Adapter – SMA Female to SSMB Female
Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C,T/T,Western Union
Model Number :
SMA/SSMB-KK
Certification :
ISO9001, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8weekd
Supply Ability :
120000pcs/year
Product name :
RF Coaxial Cable Adapter – SMA Female to SSMB Female
Material :
Brass
Plating :
gold
Durability 500 times :
500 times
Description

RF Coaxial Cable Adapter – SMA Female to SSMB Female

Product Overview

RF coaxial adapters are essential for enabling accurate interconnection between connectors of different or identical series. They serve as a reliable bridge to support seamless signal transmission and system compatibility.

Applications
This adapter is widely used for system conversion and connection, particularly in RF test instruments, measurement setups, and coaxial test cables.

Product Features

Interface: SMA Male to SSMB Male

Compact form factor, ideal for space-constrained applications

High durability and excellent electrical performance

Ensures stable signal transmission and long service life

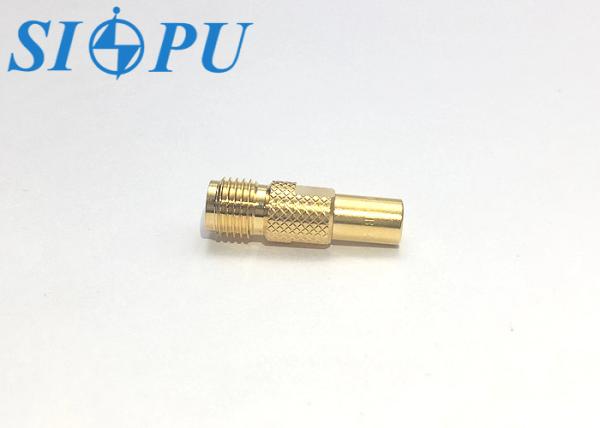

Product Appearance

RF Coaxial Cable Adapter – SMA Female to SSMB Female

Important Technical Parameter

Electrical property

 Temperature range -55～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.35

Insulation resistance

 ≥1000MΩ Insertion loss

≤0.06√F(GHz)dB

Contact resistance

 Center conductor ≤5.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium PTFE

Outer conductor

 Brass,gold plating / /

Product Image Gallery

RF Coaxial Cable Adapter – SMA Female to SSMB FemaleRF Coaxial Cable Adapter – SMA Female to SSMB Female
