BNC Male to SMA Female RF Coaxial Adapter (BNC(J)–SMA(K))
BNC Male to SMA Female RF Coaxial Adapter (BNC(J)–SMA(K))
BNC Male to SMA Female RF Coaxial Adapter (BNC(J)–SMA(K))
BNC Male to SMA Female RF Coaxial Adapter (BNC(J)–SMA(K))
BNC Male to SMA Female RF Coaxial Adapter (BNC(J)–SMA(K))
BNC Male to SMA Female RF Coaxial Adapter (BNC(J)–SMA(K))
Specifications
Brand Name :
SIPU
Model Number :
BNC/SMA-JK
Certification :
ISO9001, RoHS, CE
Place of Origin :
CHINA
MOQ :
100
Price :
Discuss
Payment Terms :
L/C,T/T,Western Union
Packaging Details :
Carton
Delivery Time :
4-8weekd
Supply Ability :
120000pcs/year
Product name :
BNC Male to SMA Female RF Coaxial Adapter (BNC(J)–SMA(K))
Material :
Brass
Plating :
Nickle
Durability 500 times :
500 times
Description

BNC Male to SMA Female RF Coaxial Adapter (BNC(J)–SMA(K))

Product Overview

RF coaxial adapters of various specifications are essential for enabling proper connectivity between connectors of the same or different series. They typically function as bridging components, ensuring stable and accurate signal transmission across RF systems.

Application Scope:
Commonly used for system interconnection and signal conversion, especially in test cables, RF instrumentation, and video transmission applications.

Product Features:

Interface: BNC female to SMA male

Enables seamless inter-series connection between BNC and SMA components

Excellent electrical performance with low insertion loss

Strong resistance to environmental stress and mechanical wear

High reliability and long service life in demanding RF applications

Compact and easy to integrate into test and communication systems

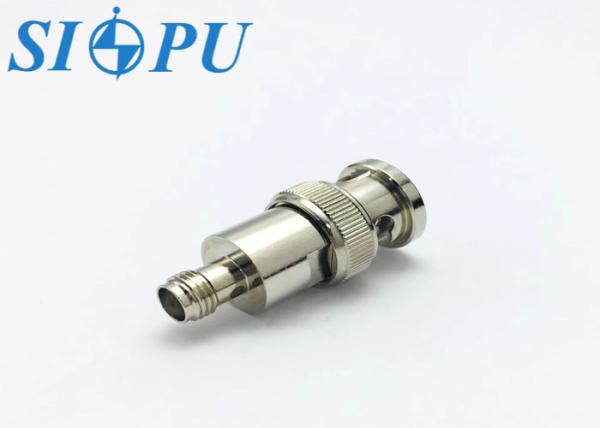

Product Appearance

BNC Male to SMA Female RF Coaxial Adapter (BNC(J)–SMA(K))

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-4GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium, gold plating Insulating medium PTFE

Outer conductor

 Brass, nickel plating Sealing ring Silicon rubber

Product Image Gallery

BNC Male to SMA Female RF Coaxial Adapter (BNC(J)–SMA(K))BNC Male to SMA Female RF Coaxial Adapter (BNC(J)–SMA(K))
