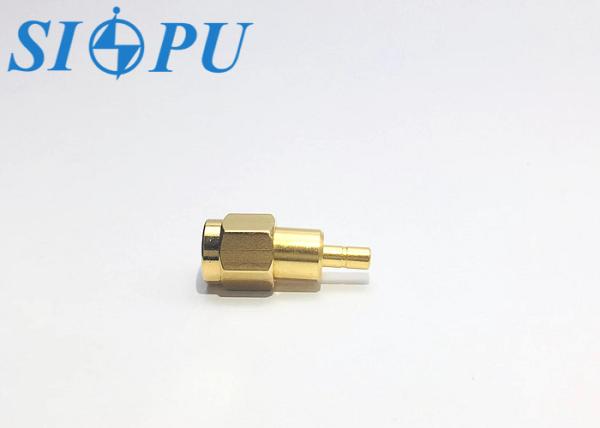

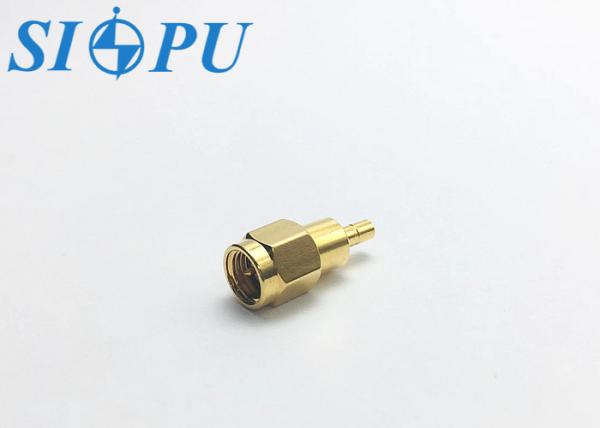

SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(J)-SSMB(J))
SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(J)-SSMB(J))
SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(J)-SSMB(J))
SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(J)-SSMB(J))
SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(J)-SSMB(J))
SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(J)-SSMB(J))
Specifications
Brand Name :
SIPU
Model Number :
SMA/SSMB-JJ
Certification :
ISO9001, RoHS, CE
Place of Origin :
CHINA
MOQ :
100
Price :
Discuss
Payment Terms :
L/C,T/T,Western Union
Packaging Details :
Carton
Delivery Time :
6-8weekd
Supply Ability :
120000pcs/year
Product name :
SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(J)-SSMB(J))
Material :
Brass
Plating :
Gold
Durability 500 times :
500 times
Description

SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(J)-SSMB(J))

Product Overview

RF coaxial adapters in various specifications are essential for ensuring correct and reliable connections between connectors of the same or different series. They primarily serve as bridging components to enable signal continuity and interface compatibility.

Application Scope:
Widely used in system conversions, signal transitions, and interconnections—especially in test instruments, RF modules, and test cable assemblies.

Product Features:

Interface: One end compatible with SMA female, the other with SSMB female

Compact design suitable for dense installations

Excellent electrical performance with low insertion loss

Long service life and high mechanical durability

Ideal for high-frequency, space-constrained, and precision applications

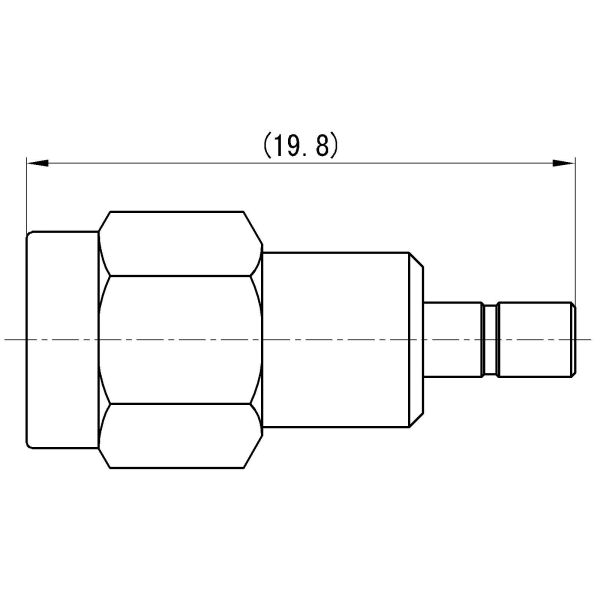

Product Appearance

SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(J)-SSMB(J))

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-3GHz

Dielectric withstanding voltage

 500V VSWR ≤1.35

Insulation resistance

 ≥1000MΩ Insertion loss

≤0.06√F(GHz)dB

Contact resistance

 Center conductor ≤5.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating Sealing ring /

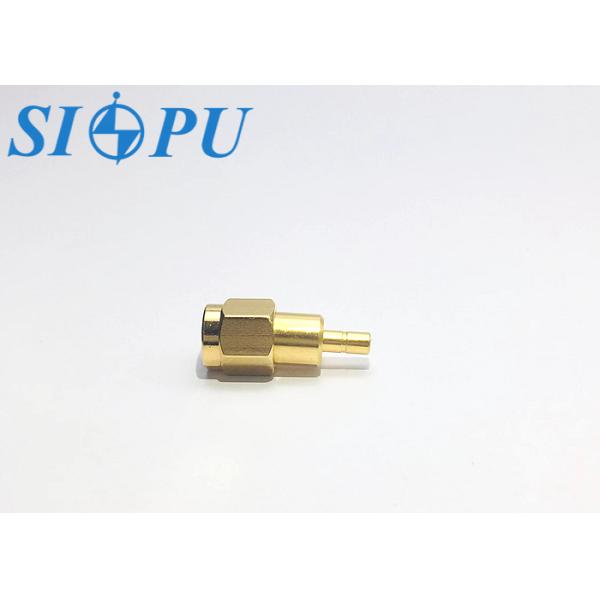

Product Image Gallery

SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(J)-SSMB(J))SMA Male to SSMB Male RF Coaxial Adapter – Brass, Gold Plated (SMA(J)-SSMB(J))
