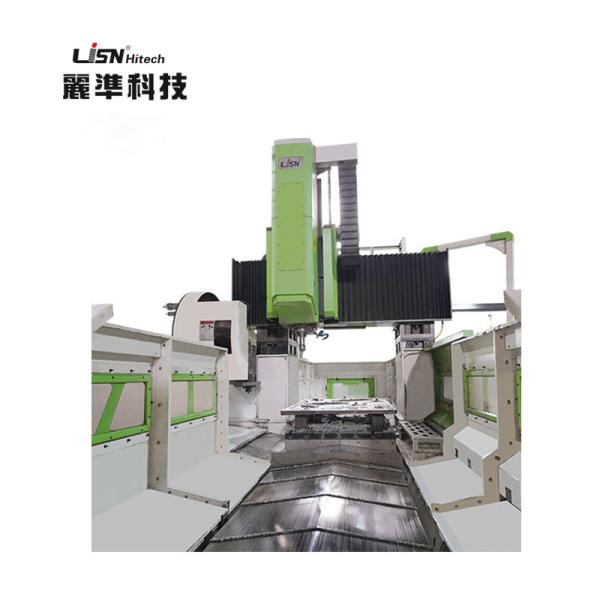

High Precision Double Column CNC Machining Center DY-2513 High Rigidity

The DY-2513 is one of the DY series machine. It is a high rigidity and high precision Gantry CNC Machining Center. The gear type spindles variable speed device provides powerful torque during operation at low speed and guarantees stable rotation during operating at high speed so as to enable wider machining range. The thickness and diameter of the spindle have been strengthened, not only to strengthen all aspects related to the spindle, but also to improve the cutting performance of the machine.

Automatic tool changer is composed of tool magazine and tool changing arms. Automatic tool changer is installed separately from machine tool with the purpose of preventing adverse influences of vibration during running of automatic tool changer and other reasons on precision. Tool selection adopts the method of fixed address in the shortest path.

All finished products are corrected and tested by laser positioning to ensure the best positioning accuracy and servo characteristics. There are also 4 axis and 5 axis version can be upgraded.

Hardware Configuration :

• Axis - X, Y, Z of the three coodinate axis and a spindle
• Number of axis - X, Y, Z three axis linkage
• Operation Panel - Mitsubishi M80
• The man-machine communication interface - PCU50
• Input and output module - Separation type through the IM361 interface module expansion of the 57 - 300 input and output module

Main Technical Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system
