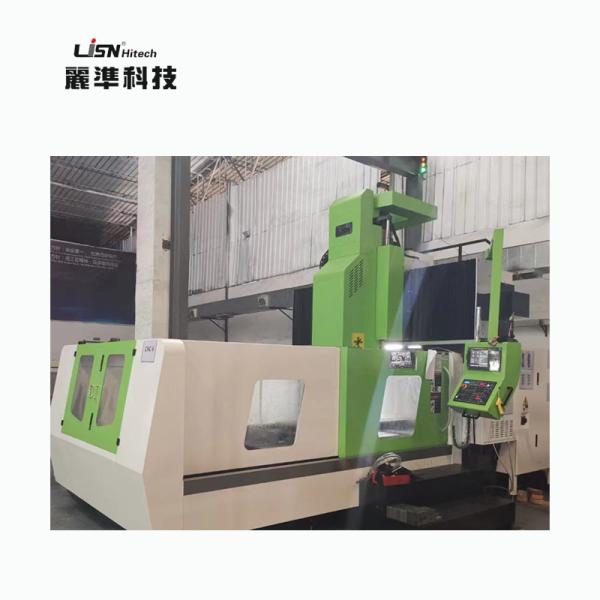

4 Axis Double Column Machining Center High Rigidity and Precision DY3015

Product Description

The 4 Axis version of DY-3015 is a high performance double column machining center. The overall rigidity of this machine is excellent. The machine is equipped with Mitsubishi M80 numerical control system. This system is easy to operate which can greatly shorten the production preparation cycle and also reduce the requirements on the technical proficiency of workers, but also can improve the processing efficiency and ensure the quality of processing. Workers only need to recompile and input the new program to meet the requirements of the processing object when the processing ogject changes, which can realize the rapid transformation of different workpiece processing. All the castings of the machine have been secondary tempered to provide the machine excellent rigidity to ensure there are no deformation problems during the precess of processing. This machine also equiped a high rigidity and precision spindle. The materials of the spindle can absorb vibration to ensure the machining accuracy and quality.

Main Features

• Speed range of the spindle: 6000RPM
• Maximum cutting feed speed: 10 - 7000RPM
• Worktable size: 3200mm*1300mm
• Maximum load bearing capability: 9T
• Distance between tow: 1500mm
• Machine dimension: 8320mm*4300mm*4600mm
• Machine Weight: 26T

Main Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

Product Details

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
