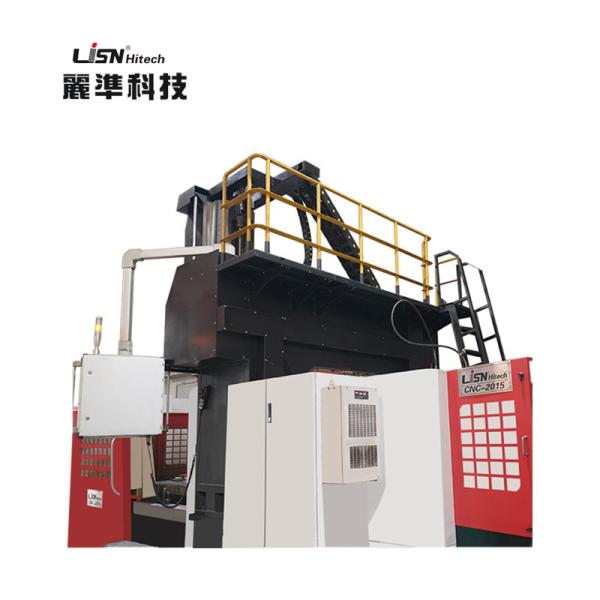

High Precision Double Column CNC Machining Center DY-2015 High Rigidity

DY2015 is one of the products in DY Gantry series. The DY2015 is a very good choice for both the rigidity of the machine itself and the precision and efficiency of processing. The machine body is made of very high quality materials with high rigidity and strong stability, to ensure that there will be no deformation in the process of processing and other problems, effectively ensure the processing efficiency.

The electric box adopts internal isolation design, the heat source part of the controller is given to separate. The front use heat exchanger heat dissipation to avoid dust from the outside into the electric box. The hot plate is cooled by a fan at the rear.

X, Y axis using roller linear guide rail, with high rigidity, low noise, can do fast displacement and obtain the best cycle accuracy.Three axis adopts high precision ball screw, combined with precision nut preloading and tail end prepulling device, to ensure that the machine backlash and thermal deformation of a long time to keep low value.

The machine is also available in 4-axis and 5-axis options.

Main Technical Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

Product Details

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
