PRODUCT DESCRIPTION

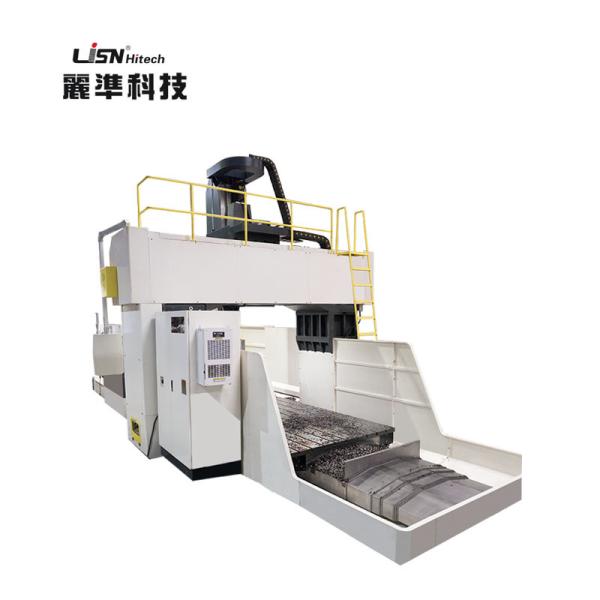

GL-4025 High Rigidity Double Column Machining Center High Precision

The GL-4025 is a double column machining center which features in high precision and high rigidity. All castings of the machine are tempered to ensure the strength of the body and all castings are also made of high hardness and rigidity materials which can providing excellent stability for the fuselage.The table size of the machine is 4000mm*2400mm, and the maximum bearing capacity of the worktable is up to 18T. The excellent bearing capacity and size make this machine very suitable for some large workpiece and complex shape workpiece plane and bevel processing. The rigidity of the body is excellent and all castings are tempered to provide excellent stability to the machine.

This machine is also equiped high precesion and rigidity spindle. The speed of the spindle is up to 6000RPM and the travle distance of the X,Y and Z axis are 3000/2600/800. Spindle rigidity is excellent which can provides excellent stability for the machining process and ensures the machining accuracy.

Main Technical Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

Product Details

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
