High Rigidity Double Column Machining Center High Precision DY3015

Product Description

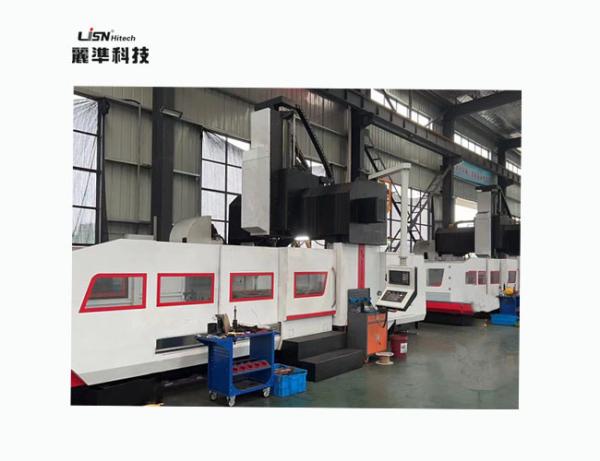

The DY-3015 is a high performance double column gantry type machining center which has high precision and high rigidity characteristics. Gantry milling machine processing accuracy and productivity are high, suitable for batch and mass production of large workpiece processing plane and bevel. The machine is equipped with Mitsubishi M80 numerical control system. The system is simple to operate, not only can improve the processing efficiency and productivity, but also can ensure the quality of processing, which can greatly shorten the production preparation cycle and reduce the requirement of technical proficiency of workers. The machine bed is horizontally arranged, and the columns and connecting beams on both sides of the machine form the milling machine of the door frame. The overall rigidity of the machine is also very excellent. All castings have been secondary tempered to provide excellent rigidity and stability to the machine.

Main Features

• Overall rigidity of the machine is excellent
• High precision and rigidity spindle
• Speed range of the spindle: 6000RPM
• Maximum cutting feed speed: 10 - 7000RPM
• Machine dimension: 8320mm*4300mm*4600mm
• Worktable size of the machine: 3200mm*1300mm
• Maximum load bearing capability: 9T

Main Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
