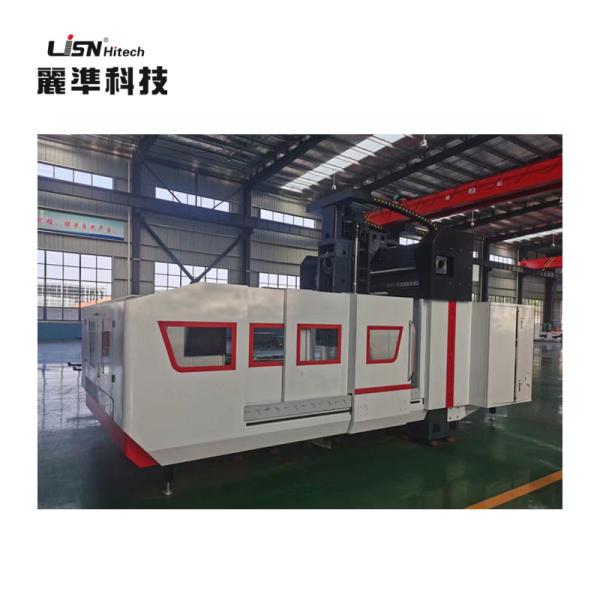

High Rigidity 4 Axis Double Column Machining Center High Precision LS 2317

Product Description

The 4 axis LS-2317 is a high performance double column machining center which features in high rigidity and high precision. All the castings are treated with secondary tempering to provide excellent rigidity and stability for the overall machine, which can effectively avoid the deformation problems in the process of machining. The machine is equipped with high speed and high rigidity spindle which can greatly improve the processing efficiency and ensure the processing quality. The gate bridge and the base adopt integrated structure design to strengthen the structure strength and provide a strong stability for the machine.

Main Features

• Strong structure strength
• 6000RPM spindle
• Excellent worktable size: 2300mm*1500mm
• Excellent load capability: 8T
• Overall rigidity is excellent

Main Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

Product Details

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
