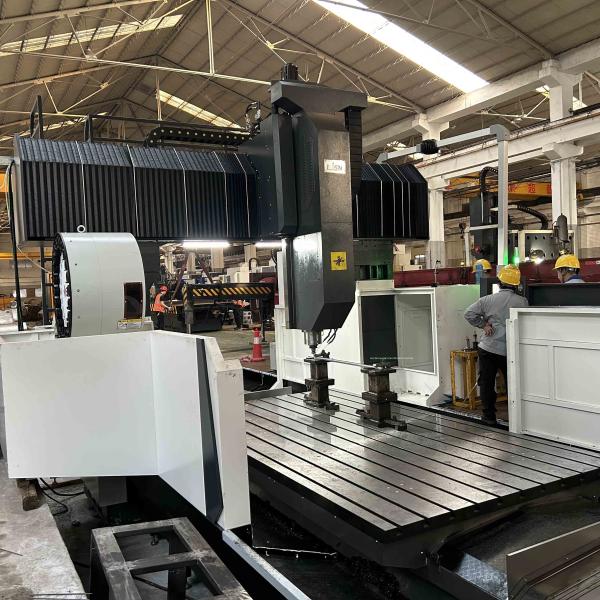

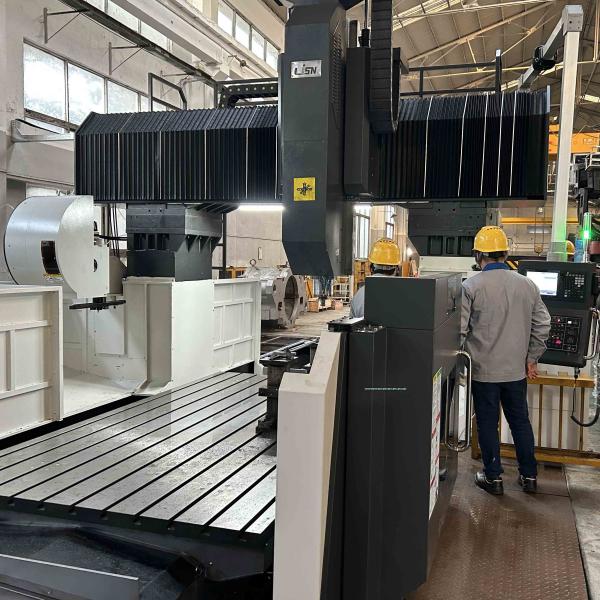

Vertical CNC Double Column Milling Machine Stable CNC4025

Product Description

The 5 axis GL4025 is a high performance CNC double column machining center which has high precision and rigidity characteristics. The machine has very high strength, excellent rigidity and stability. All castings of the machine are secondary tempered to provide excellent rigidity to the fuselage. The gate bridge and base use integrated structural design to provide excellent stability for the machine. The machine also equips a high speed and precision spindle. The speed range of the spindle is up to 6000RPM and the maximum cutting feed speed is from 10 till 6000 RPM. The materials of the spindle can absorb vibration which can effectively avoid accuracy problems in the process of machining.

Main Features

• High speed and precision spindle: 6000 RPM
• Overall rigidity is excellent
• Maximum cutting feed speed: 10 - 6000 RPM
• Good stability
• Excellent accuracy

Main Parameters

Detail drawing

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
