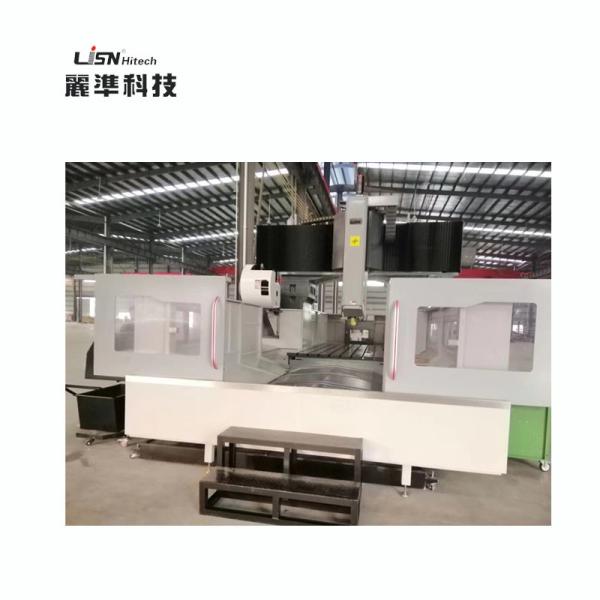

High Rigidity 4 Axis Double Column Machining Center High Precision GL4022

Product Description

The 4 axis GL4022 is a high performance double column machining center with high rigidity and precision characteristics. The machine structure design is reasonable, the base and the gate bridge adopted a integrated structural design, all the castings have been twice tempered treatment to provide excellent stability and strength for the machine to ensure it has a high rigidity for machining. The contact surface of the machine has been polished to ensure accuracy.

Main Feature

• High rigidity of the overall machine
• High speed and precision spindle: 6000RPM
• Excellent worktable size: 4000mm*2000mm
• Excellent load bearing capability: 15T
• Maximum cutting feed speed: 10 - 7000RPM

Main Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
