4 Axis CNC3020 Double Column Machining Center Workable 3000x2000mm
4 Axis CNC3020 Double Column Machining Center Workable 3000x2000mm
Specifications
Brand Name :
Li Zhun
Model Number :
CNC-3020
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
45-60 Work Days
Packaging Details :
Wooden Box
Max Load Capability :
10T
Transmission of Spindle :
Belt/Direct
Condition :
New
Warranty :
1 Year
Type :
Double Column/Gantry
Axis :
4
Description

4 Axis Double Column Machining Center CNC-3020 High Rigidity

Product Description

The 4 axis version CNC-3020 is a high performance CNC machining center which features in high rigidity and high precision. All the castings are tempering to ensure the body of the machine can gain the best rigidity and also providing the excellent stability for the process of machining. The worktable size of this machin is 3000mm*2000mm and the maximum load capability is 10T. The excellent worktable size and the load capability make thie machine as the best choice for heavy cutting and machining some complex parts.

Main Features:

  • Double column design to provide excellent stability for the machine
  • High speed and precision spindle effectively improve the processing efficiency
  • Spindle has a strong anti-vibration performance, can absorb the vibration produced in the process of processing
  • Three axis travel distance are 3000mm/2200mm/800mm
  • The spindle speed is 6000 RPM
  • X/Y/Z rapid feed speed is 15m/15m/15m

Main Technical Parameters

ITEM MODELS GL3022
WORKTABLE (WIDTH*LENGTH) mm 3000*2000
MAX LOAD BEARING OF WORKTABLE T 10
X/Y/Z AXIS TRAVEL mm 3000/2200/800
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 240-1040
SPINDLE HOLE TAPER TB50
SPINDLE SPEED RANGE r/min 6000
TRANSMISSION OF SPINDLE BOX BELT/DIRECT Optional
DISTANCE BETWEEN TOW COLUMNS mm 2300
X/Y/Z RAPID FEED SPEED m/min 15/15/15
MAX CUTTING FEED SPEED m/min 10-7000
X/Y/Z POSITION ACCURACY mm ±0.015/300
X/Y/Z RE-POSITION ACCURACY mm ±0.01
MACHINE DIMENSION mm 8500*3700*4700
MACHINE WEIGHT T 34
POWER DEMAND KVA 45
AIR PRESSURE m ³mim 7

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

Product Details

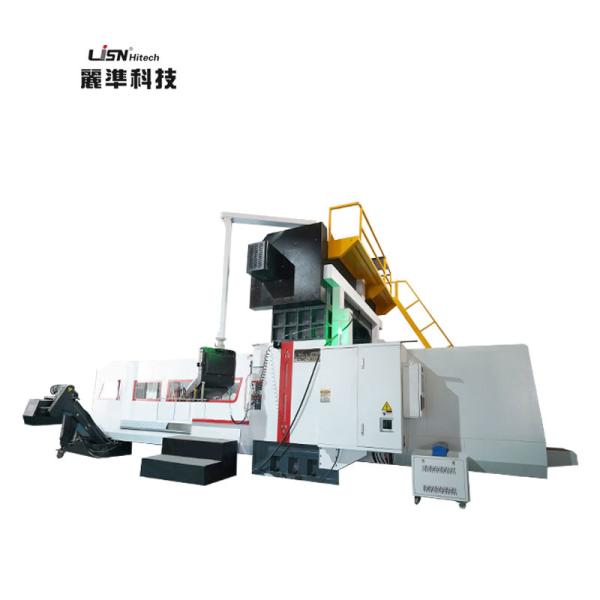

4 Axis CNC3020 Double Column Machining Center Workable 3000x2000mm

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
