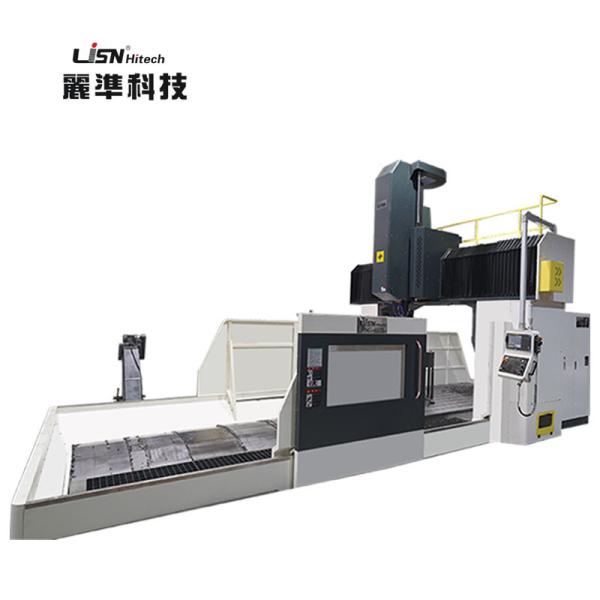

GL 4025 45KVA Double Column Machining Center Stable Gantry 5 Axis
GL 4025 45KVA Double Column Machining Center Stable Gantry 5 Axis
GL 4025 45KVA Double Column Machining Center Stable Gantry 5 Axis
GL 4025 45KVA Double Column Machining Center Stable Gantry 5 Axis
Specifications
Brand Name :
Li Zhun
Model Number :
GL-4025
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
45-60 Work Days
Packaging Details :
Wooden Box
Product Name :
5 Axis Double Column Machining Center
Condition :
New
Warranty :
1 Year
Type :
Double Column/Gantry
Axis :
5
Max Load Capability :
18T
Description

PRODUCT DESCRIPTION

GL-4025 High Rigidity 5 Axis Double Column Machining Center High Precision

The 5 GL-4025 is a high performance 5 axis double column machining center which features in high rigidity and high precision. The worktable size of this machine is 4000mm*2400mm and its maximum load bearing capability is 18T. Excellent table size and load capacity make this machine ideal for heavy or complex parts processing. All castings of the body are made of high quality and hardness materials to provide good rigidity and stability for the mchine to ensure there are no any deformation problems.

This machine is also equioed a high precision and rigidity spindle which can provide accurate processing accuracy and excellent processing stability. The speed of the spindle can reach 6000RPM ana the travle diastances of XYZ are 3000/2600/800. The material of the spindle can effectively absorb the vibration which produced in the process of machining, ensuring the accuracy of the workpiece in the process of machining.

Main Technical Parameters

ITEM MODELS GL4025
WORKTABLE (WIDTH*LENGTH) mm 4000*2400
MAX LOAD BEARING OF WORKTABLE t 18
X/Y/Z AXIS TRAVEL mm 3000/2600/800
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 240-1040
SPINDLE HOLE TAPER TB50
SPINDLE SPEED RANGE r/min 6000
TRANSMISSION OF SPINDLE BOX BELT/DIRECT Optional
DISTANCE BETWEEN TOW COLUMNS mm 2700
X/Y/Z RAPID FEED SPEED m/min 12/12/15
MAX CUTTING FEED SPEED m/min 10-7000
X/Y/Z POSITION ACCURACY mm ±0.015/300
X/Y/Z RE-POSITION ACCURACY mm ±0.01
MACHINE DIMENSION mm 11000*4100*3950
MACHINE WEIGHT T 40
POWER DEMAND KVA 45
AIR PRESSURE m ³mim 7

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

Product Details

GL 4025 45KVA Double Column Machining Center Stable Gantry 5 Axis

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
