PRODUCT DESCRIPTION

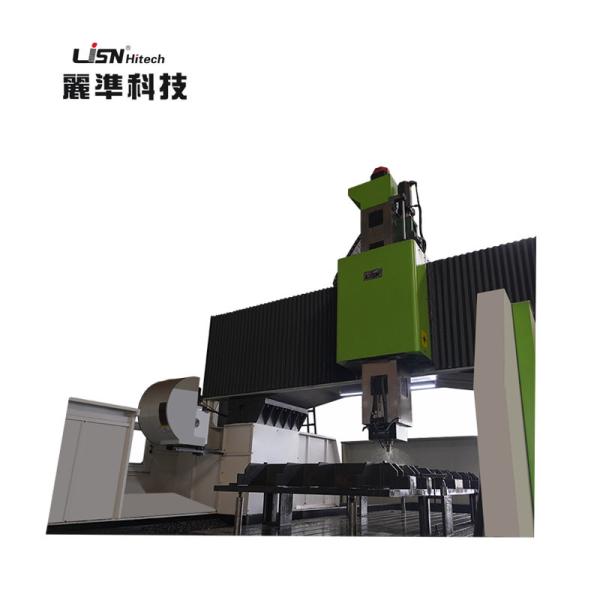

High Rigidity 5 Axis Double Column Gantry Machining Center CNC-6036

The 5 axis version CNC-6036 is a gantry machining center with excellent performance. It was develped and produced by our company. The castings used in the fuselage are made of high-strength materials, providing ultra-high rigidity and stability for the fuselage, ensuring that there will be no any deformation and other problems in the processing process. The machine is equipped with a large size worktable of 6000mm*2600mm, and the ultimate load of the worktable is 28T. The huge size worktable and excellent load capacity make this machine to be the perfect choice for heavy processing.

The spindle is also made of highly rigid materials, strong vibration resistance, to ensure that the tool can maintain good stability during processing and will not cause any accuracy problems. Three axis adopts strong steel rectangular guide rail, can withstand heavy cutting. All three axes are using Mitsubishi servomotor and direct transmission, which can providing strong power and ensuring the feed accuracy under strong bearing capacity.

Main Technical Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

Product Details

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
