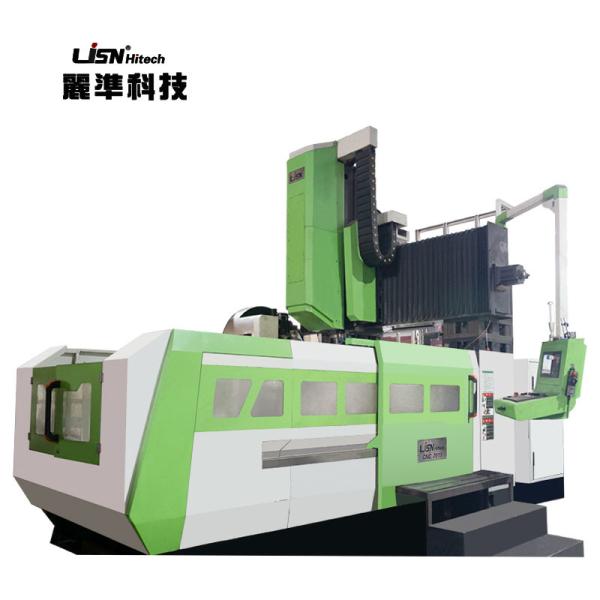

High Precision Double Column 5 Axis CNC Machining Center DY-2013 High Rigidity

PRODUCT DESCRIPTION

The 5 Axis Double Column Gantry CNC Machining Center is a high precision and high rigidity machine. The worktable size of this machine is 2200mm*1100mm and the max bearing capability is 6T. It is the best choice for precision heavy cutting and processing. The whole body is made of high strength materials to ensure that the machine has high rigidity and stability, and there will be no deformation of the body in the process of processing.

The machine is equipped with a high speed spindle, the maximum speed is up to 6000RPM. The rigidity and precision of this spindle is of the first class, which not only absorbs vibration effectively, but also achieves high speed and accurate cutting.

Main Technical Parameters

Standard Configuration for Gantry Series

1. Spindle temperature control system​

2. Central automatic lubrication system

3. Fully sealed sheet metal

4. Cutting fluid system (with pump and tank)

5. Strong double - spiral iron chip roller

6. Chain type iron chip conveyor and collecting bucket

7. Foundation bolts and level adjusting screws

8. Adjusting tool

9. Warning lights

10. Blow air cleaning device

11. Automatic power failure system

Optional Configuration for Gantry Series

1. 8000/10000RPM Direct Driven Spindle

2. Handle and broach bolt: DIN50/CAT50/ISO50

3. Increase the height of the column by 200mm

4. 40 tools magazine tool

5. XYZ three axis optical ruler (HEIDENHAIN)

6. Spindle temperature rise heat compensation function

7. Oil circuit tool handle connection

8. Spindle center water outlet system

9. Automatic tool length measuring device

10. Automatic workpiece measuring device

11. CNC rotary worktable

12. Disc type oil-water separator

13. Spray cooling system

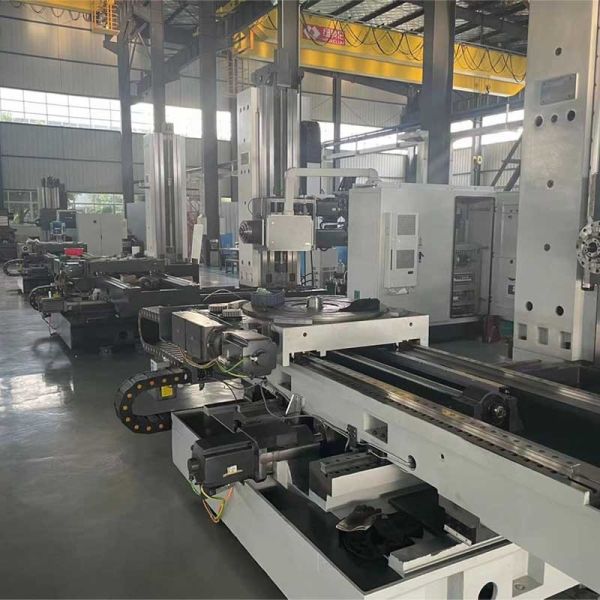

Product Details

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
